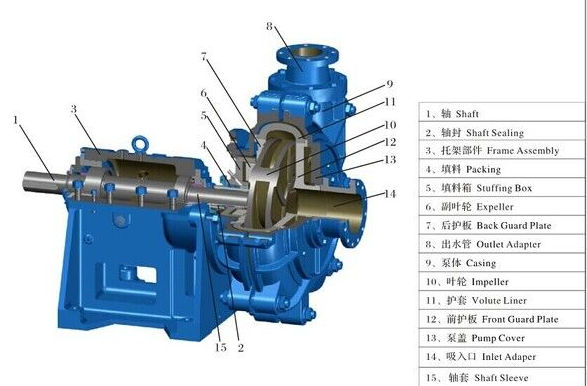

Walker ZJ系列渣浆泵是一种新型高效节能耐磨泵。该系列泵在液压设计、结构设计和耐磨材料方面具有创新性。本实用新型具有效率高、节能、振动小、噪音低、运行可靠、使用寿命长、维修方便等优点。水泵的综合性能处于国内领先水平,大部分水泵效率指标处于国际先进水平。
广泛应用于电力、冶金、煤炭、建材等行业输送固体颗粒浆料。如发电厂水力灰渣、冶金选矿厂矿浆输送、洗煤厂矿浆及重介质输送等。

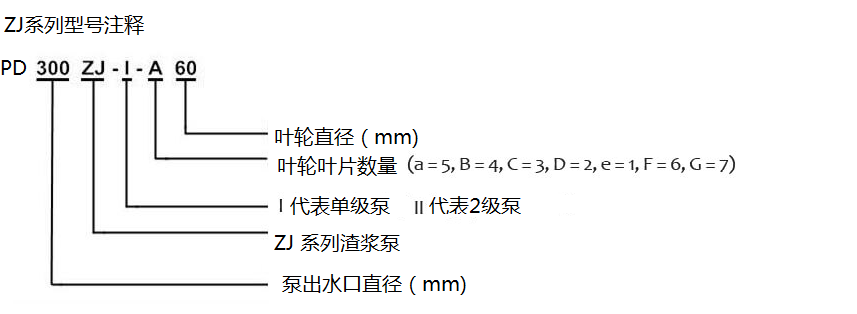

型号 | 最大功率 | 容 量 (m3/h) | 行 程 (M) | 速度 (r/ min) | 最大效率 (%) | NPSH (M) | 直径 (mm) | 重量 (kg) |
PD350ZJ-I-F100 | 560 | 526-2339 | 14.9-62.8 | 300-590 | 77.6 | 4.4 | 96 | 5465 |
PD350ZJ-I-C104 | 560 | 1335-3300.6 | 36.6-66.9 | 490-590 | 77.6 | 7.3 | 180 | 5465 |
PD350ZJ-I-C100 | 710 | 834-3502 | 11.1-60.0 | 300-593 | 73 | 7.4 | 160 | 7120 |
PD350ZJ-I-A85 | 710 | 1025-3741 | 12.3-62.3 | 400-742 | 77.2 | 10.5 | 100 | 5461 |
PD350ZJ-I-A80 | 630 | 837-3575 | 8.4-56.4 | 400-742 | 75.7 | 10.5 | 92.8 | 4920 |
PD300ZJ-I-A100 | 450 | 464-1826 | 15.3-65.2 | 300-590 | 81.1 | 3 | 88 | 5265 |
PD300ZJ-I-A95 | 400 | 441-1735 | 13.8-58.8 | 300-590 | 78.1 | 3 | 88 | 5220 |
PD300ZJ-I-A90 | 560 | 505-1844 | 21.2-79.9 | 400-730 | 82.8 | 3.9 | 85 | 5005 |
PD300ZJ-I-C90 | 400 | 604-2392 | 10.9-50.9 | 300-590 | 78.6 | 3.6 | 160 | 6290 |
PD300ZJ-I-A85 | 450 | 477-1742 | 18.9-71.3 | 400-730 | 79.8 | 3.8 | 85 | 4965 |
PD300ZJ-I-A70 | 630 | 635-2333 | 16.0-76.8 | 490-980 | 80.4 | 3.9 | 92 | 3560 |
PD300ZJ-I-A65 | 500 | 589-2166 | 13.8-66.2 | 490-980 | 77.4 | 3.7 | 92 | 3531 |
PD300ZJ-I-A56 | 250 | 395-1568 | 9.7-46.0 | 490-980 | 80.9 | 3.5 | 96 | 3030 |
PD250ZJ-I-A103 | 560 | 402-1573 | 29.7-110.5 | 400-730 | 74.5 | 2.8 | 69 | 5085 |
PD250ZJ-I-A96 | 560 | 403-1466 | 25.4-93.7 | 400-730 | 77.8 | 3.5 | 69 | 5035 |
PD250ZJ-I-A90 | 450 | 378-1374 | 22.3-82.4 | 400-730 | 73.8 | 3.4 | 69 | 4980 |
PD250ZJ-I-A85 | 800 | 376-1504 | 30.1-128.7 | 490-980 | 76.5 | 3.5 | 76 | 4530 |
PD250ZJ-I-A83 | 800 | 367-1469 | 28.7-122.7 | 490-980 | 75.5 | 3.5 | 76 | 4514 |
PD250ZJ-I-A80 | 710 | 354-1416 | 26.7-114.0 | 490-980 | 73.5 | 3.4 | 76 | 4490 |
PD250ZJ-I-C80 | 450 | 451-1790 | 7.4-38.3 | 300-592 | 75.1 | 3.3 | 144 | 5203 |
PD250ZJ-I-A78 | 630 | 415-1796 | 21.1-102.5 | 490-980 | 71.5 | 3.2 | 76 | 4474 |
PD250ZJ-I-A75 | 560 | 300-1480 | 20.8-97.5 | 490-980 | 77.5 | 3 | 72 | 3480 |
PD250ZJ-I-A73 | 500 | 292-1441 | 19.7-92.4 | 490-980 | 76.5 | 3 | 72 | 3466 |
PD250ZJ-I-A70 | 450 | 280-1381 | 18.1-84.9 | 490-980 | 74.5 | 2.9 | 72 | 3446 |
PD250ZJ-I-A68 | 450 | 272-1342 | 17.1-80.1 | 490-980 | 73.5 | 2.7 | 72 | 3432 |
PD250ZJ-I-A65 | 315 | 299-1249 | 15.4-71.0 | 490-980 | 76.9 | 3 | 72 | 3020 |
PD250ZJ-I-A63 | 315 | 290-1211 | 14.4-66.7 | 490-980 | 75.9 | 3 | 72 | 3008 |
PD250ZJ-I-A60 | 280 | 276-1153 | 13.1-60.5 | 490-980 | 73.9 | 2.8 | 72 | 2991 |
PD200ZJ-I-A85 | 560 | 221-907 | 32.0-133.7 | 490-980 | 70.5 | 2.8 | 54 | 4110 |
PD200ZJ-I-A75 | 355 | 225-900 | 22.8-102.9 | 490-980 | 74.1 | 3 | 56 | 3070 |
PD200ZJ-I-A73 | 355 | 219-876 | 21.6-97.5 | 490-980 | 73.1 | 3 | 56 | 3056 |
PD200ZJ-I-A70 | 315 | 205-976 | 19.4-86.41 | 490-980 | 75.6 | 2.8 | 56 | 2465 |
PD200ZJ-I-A68 | 315 | 199-948 | 8.3-81.5 | 490-980 | 74.6 | 2.8 | 56 | 2453 |
PD200ZJ-I-A65 | 250 | 235-950 | 16.4-72.0 | 490-980 | 79.6 | 2.5 | 62 | 2323 |
PD200ZJ-I-A63 | 250 | 228-921 | 15.4-67.6 | 490-980 | 78.6 | 2.5 | 62 | 2311 |
PD200ZJ-I-A60 | 185 | 218-870 | 13.9-62.0 | 490-980 | 83.5 | 2.5 | 62 | 2223 |
PD200ZJ-I-A58 | 185 | 211-841 | 13.0-57.9 | 490-980 | 82.5 | 2.5 | 62 | 2214 |
PD200ZJG-I-B45 | 132 | 85-538 | 10.5-72.9 | 700-1480 | 68 | 10.7 | 28 | 1531 |
PD150ZJ-I-A71 | 220 | 142-552 | 21.8-93.8 | 490-980 | 69.8 | 2.4 | 48 | 2263 |
PD150ZJ-I-A70 | 185 | 93-401 | 20.2-91.2 | 490-980 | 62.3 | 2 | 37 | 2245 |
PD150ZJ-I-A65 | 200 | 150-600 | 17.4-75.7 | 490-980 | 70.8 | 2.5 | 48 | 2223 |
PD150ZJ-I-A63 | 185 | 146-582 | 16.3-71.1 | 490-980 | 69.8 | 2.5 | 48 | 2211 |
PD150ZJ-I-A60 | 160 | 135-550 | 14.7-63.5 | 490-980 | 75.9 | 2.5 | 48 | 2203 |
PD150ZJ-I-A58 | 132 | 131-532 | 13.7-59.3 | 490-980 | 74.9 | 2.5 | 48 | 2033 |
PD150ZJ-I-C58 | 160 | 134-596 | 12.8-61.0 | 490-980 | 69.1 | 2 | 75 | 2063 |
PD150ZJ-I-A57 | 110 | 95-427 | 13.2-56.3 | 490-980 | 67.8 | 1.8 | 32 | 2023 |
PD150ZJ-I-A55 | 110 | 124-504 | 12.3-53.4 | 490-980 | 72.9 | 2.3 | 48 | 2019 |
PD150ZJ-I-A50 | 75 | 115-460 | 9.5-43.1 | 490-980 | 76.8 | 2.5 | 48 | 1735 (1648) |
PD150ZJ-I-A48 | 75 | 111-442 | 8.7-39.7 | 490-980 | 75.8 | 2.5 | 48 | 1728 (1641) |
PD150ZJG-I-B45 | 110 | 105-458 | 10.9-72.5 | 700-1480 | 65.4 | 7.3 | 25.6 | 1576 (1433) |
PD150ZJ-I-C42 | 132 | 142-550 | 12.1-62.8 | 700-1480 | 77.1 | 2.2 | 69 | 1605 (1518) |
PD100ZJ-I-A50 | 160 | 85-360 | 20.5-100.2 | 700-1480 | 69.6 | 2.5 | 34 | 1475 (1388) |
PD100ZJ-I-A46 | 132 | 79-331 | 17.3-84.8 | 700-1480 | 67.6 | 2.3 | 34 | 1461 (1374) |
PD100ZJ-I-A42 | 90 | 66-275 | 14.7-70.8 | 700-1480 | 71 | 2.5 | 35 | 1075 (1021) |
PD100ZJ-I-A39 | 75 | 61-255 | 12.6-61.0 | 700-1480 | 39 | 2.4 | 35 | 1064 (1010) |
PD100ZJ-I-B42 | 90 | 83-365 | 12.7-66.8 | 700-1480 | 71.6 | 2.5 | 40 | 1085 (1031) |
PD100ZJG-I-B42 | 75 | 45-205 | 9.7 | 700-1480 | 63.2 | 1.8 | 18 | 1080 (990) |
PD100ZJ-I-A36 | 55 | 61-245 | 49.5 | 700-1480 | 71.6 | 2 | 32 | 1010 (956) |
PD100ZJ-I-A33 | 45 | 56-225 | 8.2-41.6 | 700-1480 | 69.6 | 1.8 | 32 | 1003 (949) |
PD80ZJ-I-A52 | 160 | 51-242 | 22.1-109.8 | 700-1480 | 56.3 | 2.1 | 21 | 1465 (1378) |
PD80ZJ-I-A42 | 75 | 61-204 | 14.4-70.4 | 700-1480 | 66.7 | 2.5 | 24 | 1053 (963) |
PD80ZJ-I-A39 | 55 | 57-189 | 12.4-60.7 | 700-1480 | 64.7 | 2.4 | 24 | 1042 (952) |
PD80ZJ-I-A36 | 45 | 46-190 | 9.6-51.4 | 700-1480 | 67.7 | 2.5 | 24 | 980 (926) |
PD80ZJ-I-A33 | 37 | 43-174 | 8.0-43.2 | 700-1480 | 65.7 | 2.3 | 24 | 973 (919) |
PD65ZJ-I-A30 | 15 | 23-79 | 7.4-34.8 | 700-1460 | 63.5 | 2 | 19 | 504 (512) |
PD65ZJ-I-A27 | 11 | 20-71 | 6.0-28.2 | 700-1460 | 61.5 | 1.8 | 19 | 500 (508) |
PD50ZJ-I-A50 | 90 | 27-111 | 22.3-110.7 | 700-1480 | 45.1 | 3 | 13 | 1378 |
PD50ZJ-I-A46 | 55 | 23-94 | 17.9-85.8 | 700-1480 | 44.7 | 1.4 | 14 | 1082 (992) |
PD50ZJ-I-A33 | 18.5 | 12-54 | 7.7-42.5 | 700-1480 | 42.1 | 2.9 | 13 | 537 (545) |
PD40ZJ-I-A19 | 15 | 8.0-34.9 | 12.8-57.1 | 1430-2930 | 58.8 | 1.3 | 11 | 173 |
PD40ZJ-I-A17 | 7.5 | 4.5-23.4 | 9.1-44.6 | 1400-2900 | 52.4 | 2.5 | 11 | 121 (127) |
