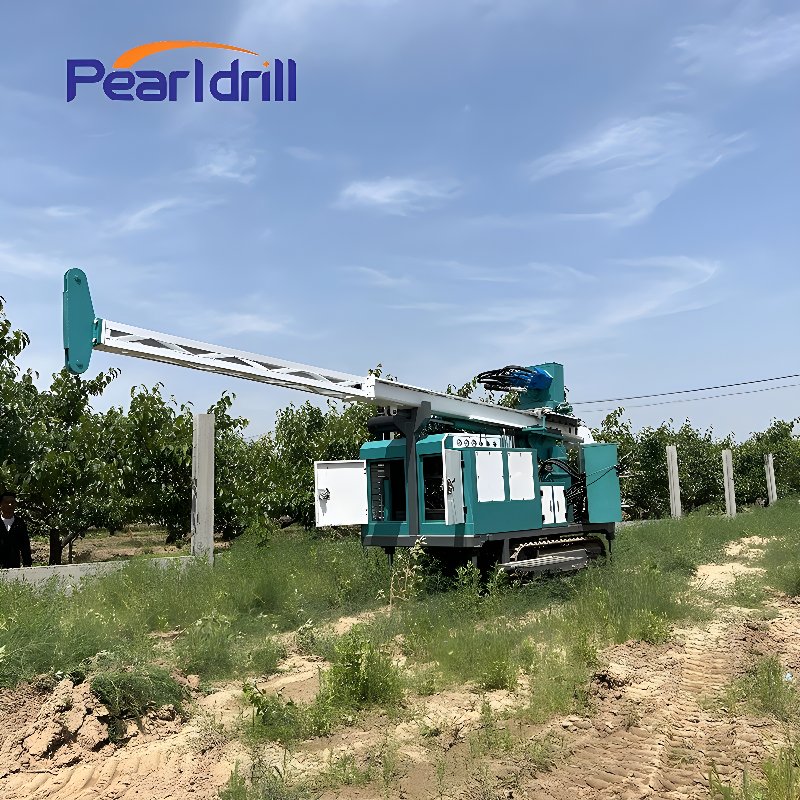

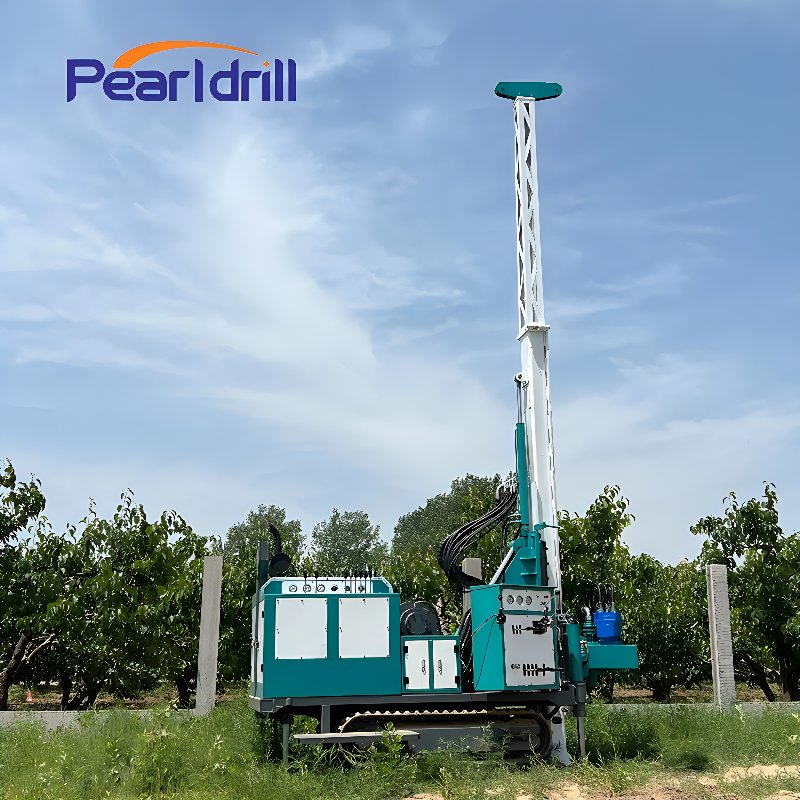

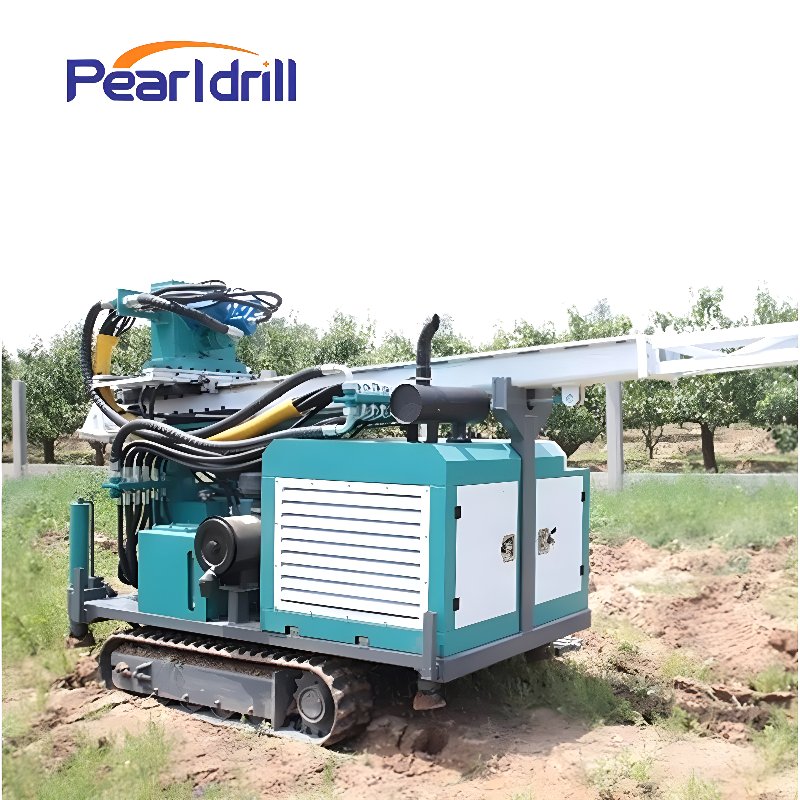

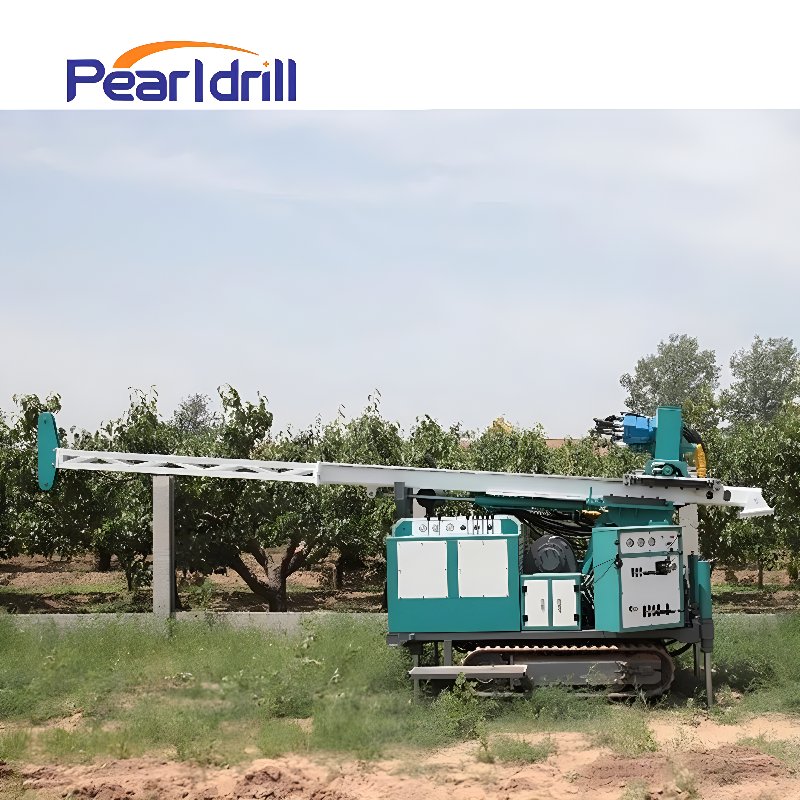

Parameter table of multifunctional water well core drilling rig
|
||||
|
Model(NEW)
|
HF300D
|
HF400D
|
HF600D
|
HF800D
|
|
Max. Drilling depth
|
300m
|
400m
|
600m
|
800m
|
|
Drilling diameter
|
55-168mm
|
55-168mm
|
55-168mm
|
55-168mm
|
|
Core diameter
|
48-150mm
|
48-150mm
|
48-150mm
|
48-150mm
|
|
Drill pipe length
|
2M
|
2M
|
2M
|
2M
|
|
Drilling angle
|
45-90°
|
45-90°
|
45-90°
|
45-90°
|
|
Diesel engine power
|
60KW
|
78KW
|
92KW
|
92KW six-cylinder
|
|
Power head speed
|
100-1100rpm
|
100-1100rpm
|
100-1100rpm
|
100-1300rpm
|
|
power head torque
|
280-2100N.m
|
280-2100N.m
|
280-2400N.m
|
280-2800N.m
|
|
Total Weight
|
3.6t
|
4.1t
|
5.5t
|
7.5t
|
|
Dimensions
|
3.6m*1.3m*1.7m
|
3.6m*1.5m*1.8m
|
3.6m*1.8m*2.1m
|
3.8m*2m*2.5m
|
