Chinese Roller Cone Bits for Water Wells in Fractured Carbonate Formations

Fractured carbonate formations are widely distributed in Southwest, North, and Northwest China, and they're important groundwater storage media. These formations have well-developed karst, complex fracture networks, and uneven rock hardness, which brings a lot of challenges to water well drilling. Choosing the right bit type directly affects drilling efficiency, well completion quality, and construction costs.

Characteristics of Fractured Carbonate Formations and Drilling Difficulties

1. Strong heterogeneity: The same well section may alternately have hard limestone, fractured zones, dissolution pores, and muddy fillings.
2. Well-developed fractures and caves: When drilling into caves, problems like drilling tool free-fall, lost circulation, and block falling and sticking can easily happen.
3. Big differences in rock abrasiveness: Dense limestone is highly abrasive, while dissolution zones are soft and prone to collapse.
4. Active groundwater: Water inflow and leakage alternate, affecting drilling fluid performance and wellbore stability.

Applicability of Roller Cone Bits in Fractured Carbonate Formations

1. Strong impact rock-breaking ability: Suitable for hard limestone and dolomite.
2. Adapts to alternating soft and hard layers: Not easy to get bit balling in dissolution zones and fractured zones.
3. Complete specifications: Can be matched with DTH hammers, water well rigs, reverse circulation rigs, etc.
4. Long service life: In formations with medium abrasiveness, footage efficiency is better than PDC bits in fractured formations.

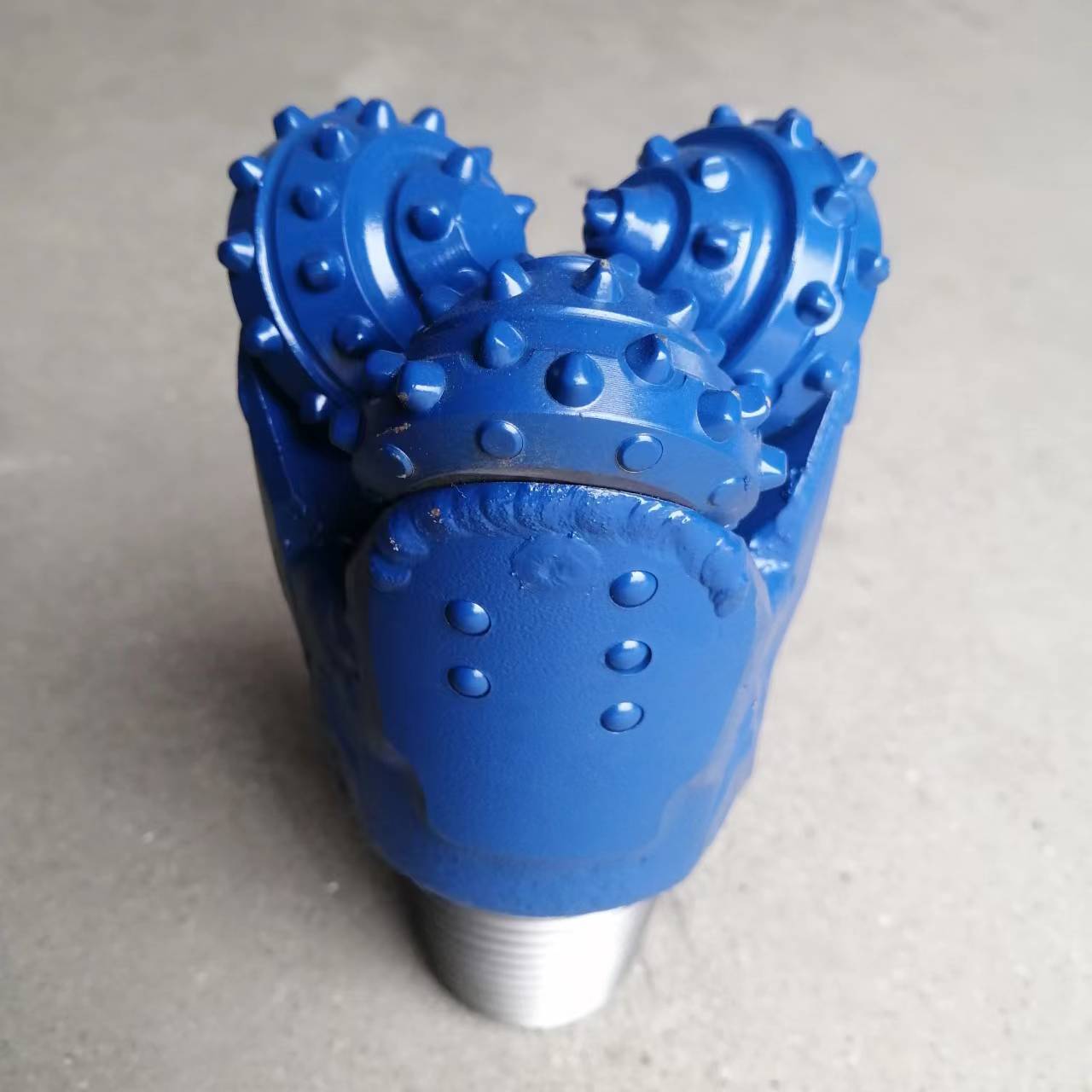

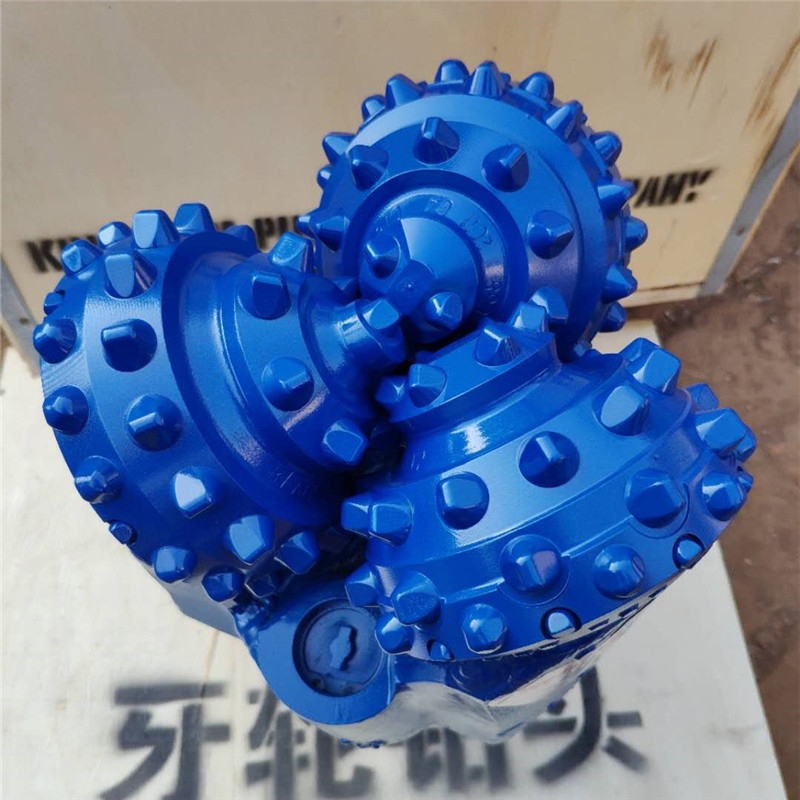

Pearldrill Brand Roller Cone Bit Technical Features

Technical Feature	Specific Description	Applicability to Fractured Carbonate Formations
Tungsten carbide tooth material	Uses high-toughness hard alloy teeth, improved impact resistance	Reduces tooth breakage in fractured zones
Bearing seal	Metal seal + rubber seal composite structure	Adapts to alternating water inflow and mud conditions
Cone tooth arrangement	Optimized tooth density and angle	Balances hard rock drilling and soft layer cuttings removal
Shirt tail reinforcement	Surfacing wear-resistant layer	Resists rock wear in dissolution zones
Nozzle design	Replaceable water nozzles	Convenient for adjusting hydraulic parameters during lost circulation
Specification range	Covers φ76mm～φ311mm	Meets needs of water wells, geothermal wells, and exploration wells

Pearldrill Roller Cone Bit Application Comparison in Typical Formations

Bit Type	Applicable Formation	Average ROP (m/h)	Average Footage per Bit (m)	Anti-sticking Ability	Cost Efficiency
Pearldrill tri-cone bit Click	Medium-hard limestone, fractured zones	3.5～5.0	80～150	Strong	High
Ordinary domestic roller cone bit	Medium-hard limestone	2.5～3.5	50～90	Medium	Medium
PDC bit	Homogeneous soft—medium-hard rock	4.0～6.0	100～200	Weak (tooth breakage easy in fractured zones)	Medium
DTH hammer bit	Hard rock, intact formation	6.0～12.0	200～400	Weak (easy to drop drilling tools in caves)	High (intact formation)

Note: The data are comprehensive averages from multiple water well projects, and actual values are affected by formation, equipment, and operation level.

Application Recommendations

1. Bit selection: In fractured carbonate formations, it is recommended to give priority to Pearldrill roller cone bits with metal seals and high-toughness alloy teeth.
2. Drilling tool assembly: Use centralizers and shock absorbers to reduce impact damage to the roller cone.
3. Drilling fluid management: Appropriately increase viscosity in sections with well-developed caves to prevent block falling and sticking.
4. Parameter control: WOB should not be too high, rotation speed should be moderate, and avoid blindly increasing pressure in fractured zones.
5. Backup plan: In large cave sections, DTH hammer or casing-while-drilling methods can be prepared.

Conclusion

Chinese roller cone bits have wide applicability in water well drilling in fractured carbonate formations and can effectively handle complex working conditions in hard rock, fractured zones, and dissolution formations. Through optimization of materials, bearings, tooth arrangement, and hydraulic structure, the Pearldrill brand performs well in ROP, footage per bit, and anti-sticking ability, and is suitable for promotion and application in karst areas of Southwest China, fractured karst water wells in North China, and similar formations. In actual construction, reasonable selection and matching should be made according to formation characteristics, equipment conditions, and economic benefits to achieve efficient and safe well completion.
