The Importance of Air Compressors in Water Well Drilling
In the field of water well drilling, air compressors can be regarded as the "unsung heroes" and play an irreplaceable and crucial role. Their core value is first reflected in providing strong and continuous power support for drilling operations. By generating high-pressure gas, air compressors can drive the impactors, enabling the drill bits to break rocks through high-frequency impacts, which greatly improves the drilling efficiency. When facing hard rock formations, the powerful power output by the air compressor allows the drill bit to easily cope with the situation and quickly penetrate the rock layer, laying the foundation for the smooth excavation of water wells. In addition to providing power, air compressors also play an important role in the slag removal process. During the drilling process, a large amount of rock cuttings and debris will be generated. If they are not discharged in time, they will accumulate in the borehole, hindering the normal operation of the drill bit and may even lead to serious problems such as drill sticking. The high-pressure air flow generated by the air compressor can carry these rock cuttings and debris to the surface through the annular space between the drill pipe and the wellbore wall, keeping the borehole clean and unobstructed, and ensuring the efficient and safe progress of the drilling work. This not only helps to increase the drilling speed but also reduces equipment wear and extends the service life of the equipment.

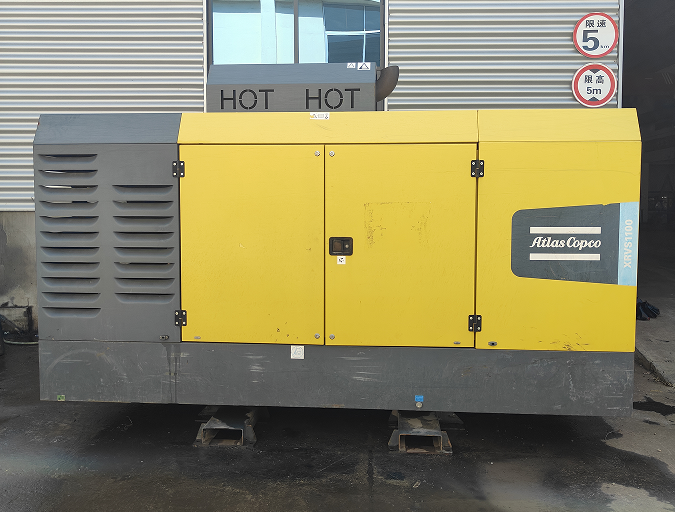

Brand 1: Atlas Copco Air Compressor
In the field of water well drilling, Atlas Copco is well-known and has an excellent reputation. Taking its X-AIR 1300 - 35 model as an example, its advantages are quite remarkable. Its large displacement design, with a range of 38.8 - 32.7m³/min, can provide a continuous and sufficient air volume for drilling operations, ensuring the efficient operation of the impactor. With a high pressure of up to 15 - 35bar, it can easily cope with hard and complex rock formations. Whether it is in the special geology of Seshe Village, Shilin County, Yunnan Province, or in the construction of high-standard farmland in Jalainur, Inner Mongolia, it can efficiently complete the drilling tasks. It is worth mentioning that the energy-saving characteristics of this air compressor are also very prominent. The "National IV" standard engine jointly developed with well-known engine manufacturers has excellent fuel economy. In the project in Jalainur, Inner Mongolia, compared with the National III Y1200 air compressor, the fuel consumption efficiency has increased by about 25%. The mature and advanced control system it is equipped with can comprehensively monitor the operating conditions of the whole machine, intelligently adjust the operating state of the equipment, and reduce losses. The electronic thermostatic valve can effectively extend the service life of the bearings, the air end, and the screw oil. The closed-loop temperature control is sensitive and accurate. It is also possible to achieve dynamic air volume adjustment by optionally configuring the drilling expert system, increasing the additional air volume by 10%, and increasing the penetration rate by 30%.

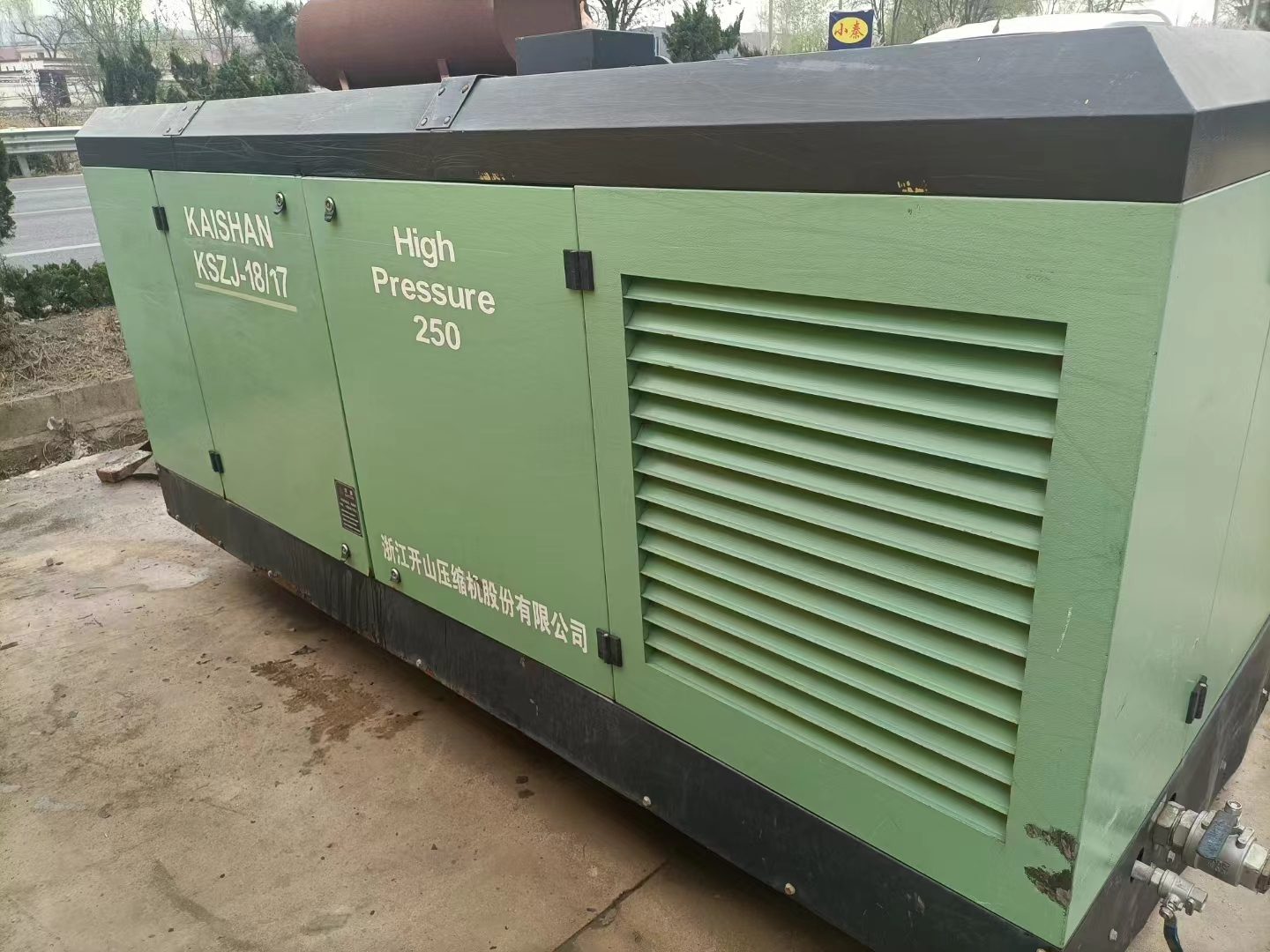

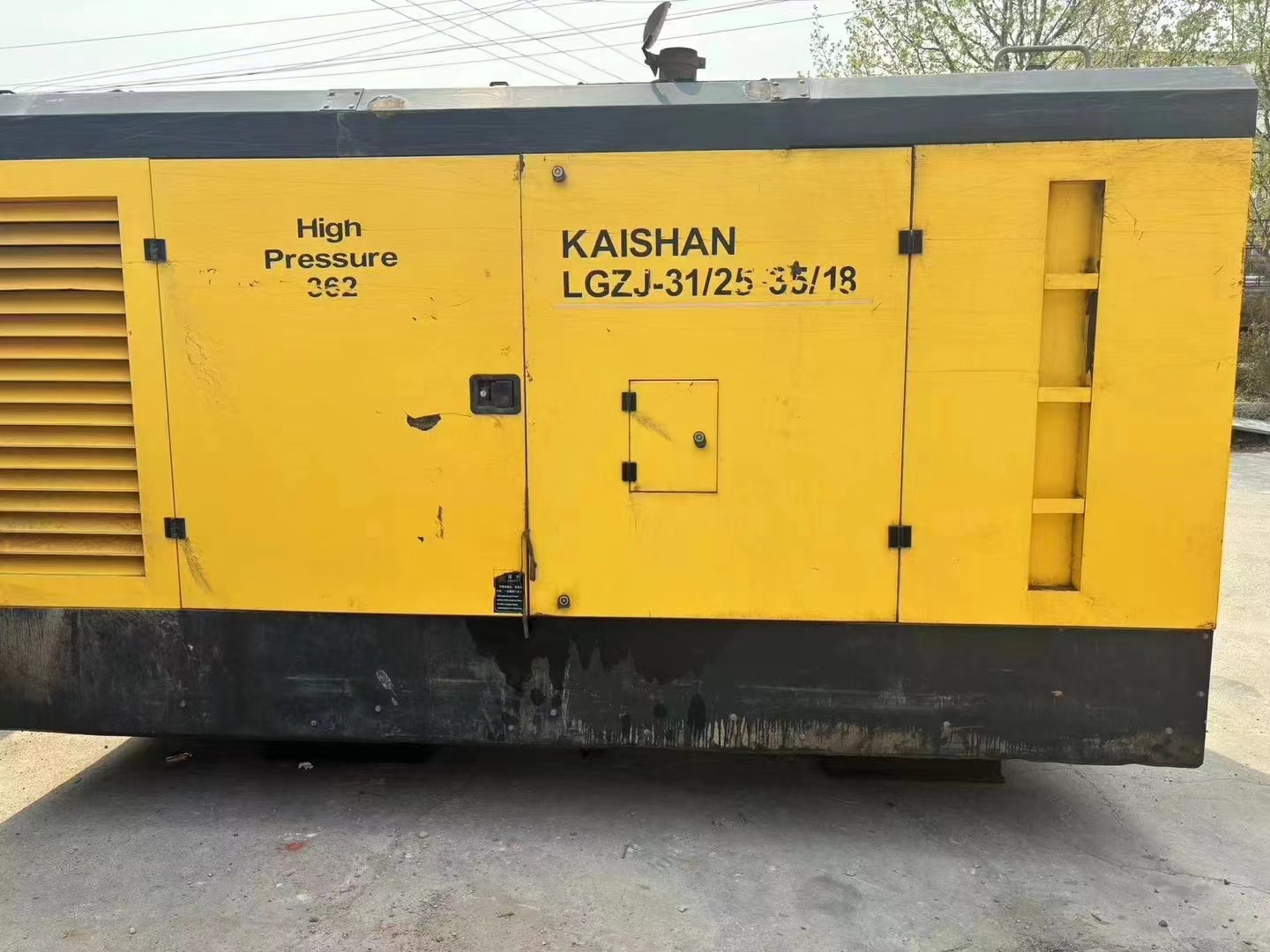

Brand 2: Kaishan Air Compressor
The KSZJ series of air compressors developed by Kaishan Group specifically for water wells and geothermal wells is highly targeted. For example, the KSZJ-29/23G model has a displacement of 29m³/min, a working pressure of 2.3MPa, a drilling depth of over 200 meters, and can be matched with various models of drill rigs. This series of air compressors has an extremely high cost performance. Due to independent research and development and mass production, the price is more affordable than that of conventional diesel screw air compressors. It adopts the SKY patented screw main unit, with a large-diameter rotor design, directly connected to the diesel engine, featuring high efficiency, good reliability, and long service life. Equipped with heavy-duty dedicated diesel engines such as Cummins and Yuchai, it has strong power, good fuel economy, and a complete after-sales service system. In terms of maintenance, Kaishan air compressors are also extremely convenient. The spacious maintenance and repair doors make the components that need to be maintained easily accessible. Maintaining the air filter, oil filter, etc. is easy and convenient, which can effectively reduce the downtime.
Brand 3: Zhigao Air Compressor
Zhigao also has a good reputation in the field of water well drilling. Its air compressors are equipped with advanced air compression technology, which can stably provide high-pressure and large-flow air, adapting to water well drilling operations under different geological conditions. In some large-scale water conservancy projects, Zhigao air compressors have ensured the efficient progress of the drilling work with their excellent performance. Their equipment has high reliability, which can reduce the downtime caused by failures and save costs for the project. Sullair air compressors also perform outstandingly, and are renowned for their high efficiency, energy conservation, stability, and reliability. In areas where the well-drilling industry is concentrated, such as Shandong Province, Sullair mobile machines are deeply trusted by users due to their strong power and good performance. Their products are compactly designed, making them easy to transport and install, and can be quickly put into the on-site operation of water well drilling, providing stable air source support for the drilling work.
How to Choose a Suitable Air Compressor
When choosing an air compressor for water well drilling, multiple factors need to be comprehensively considered. It is necessary to accurately determine the pressure and displacement requirements. Different geological conditions and drilling depths have greatly different requirements for the pressure and displacement of air compressors. When drilling deep water wells or facing hard rocks, an air compressor with high pressure and large displacement is required. For example, the X-AIR 1300 - 35 model of Atlas Copco can well meet this need. The budget is also an important consideration. Imported brands such as Atlas Copco usually have excellent performance but relatively high prices; while domestic brands such as Kaishan have obvious cost-performance advantages and can save procurement costs for users while meeting performance requirements. The maintenance cost should also not be ignored. It is advisable to give priority to air compressors that are easy to maintain and for which spare parts are easily available. For example, the spacious maintenance and repair door design of Kaishan air compressors makes the maintenance work easy and convenient, effectively reducing the downtime and lowering the maintenance cost.
