DTH Drill bit features:
Fast drilling and retrieval!High efficiency, low labor intensity of workers!
DTH Drill bit usage:
Widely used in earth and stone engineering mining Wells drilling construction projects drilling Wells edge pillar support.
DTH Drill bit model:
Medium/Low wind pressure DTH Drill bit:80 90 100 110 120 130 140 150 180 185 200 220
High wind pressure DTH Drill bit:115 127 138 152 165 178 195 203 216 240 254 304
DTH Drill bit type:
Medium/Low wind pressure DTH Drill bit,High wind pressure DTH Drill bit
DTH hammer model:
Medium/low wind pressure DTH hammer:CIR65 CIR70 CIR90 CIR110 CIR130 CIR150 CIR170 CIR200
High wind pressure DTH hammer:DHD340 DHD350 DHD360 DHD380 N125 SD12
DTH HAMMER application scope:
Widely used in metallurgical, coal, chemical, building materials are not busy mines and water conservancy, hydropower, highway and railway defense construction projects, etc. Suitable for dry wind water mixing and shotgun-hole water gushing wet operation, reliable performance, is the ideal drilling hole and rock drilling equipment.
Drill Diameter
The connection specification
Alloy (star)
Stomates
Weight(KG)
Notes
50
29×4
5
1
1
With type 50 hammer
65
37×4
6
1
1.4
With type 60 hammer
76
44×4
8
2
2.2
With type 70 hammer
80
50×6
8
2
3.2
With type 80 hammer
90
54×6
10/11
2/3
3.9
With type 90 hammer
100
54×6
10/11
2/3
4.1
With type 90 hammer
110
54×6/60×4/65×6
13
2/3
6.0
With type 90/100B/110 hammer
120
54×6/60×4/65×6
12/13
2/3
6.2
With type 90/100B/110 hammer
130
54×6/60×4/65×6
15
3
7.2
With type 90/100B/110 hammer
140
60×4/65×6
15
3
7.9
With type 100B/110 hammer
145
60×4/65×6
16
3
8.2
With type 100B/110 hammer
150
60×4/65×6/90×6
16/20
3
8.6-19.8
With type 100B
/110/150 hammer
160
65×6/90×6
20/21
3
19.3
With type 110/150 hammer
170
65×6/90×6
20
3
19.8
With type 110/150 hammer
175
65×6/90×6
20/21
3
20
With type 110/150 hammer
180
65×6/90×6
20
3
21.6
With type 110/150 hammer
200
90×6
20
3
24
With type 150 hammer
105
64×8
13
2
8
With type 340 hammer
115
64×8
13
2
8.5
With type 340 hammer
140
82×8
14
2
12
With type 350 hammer

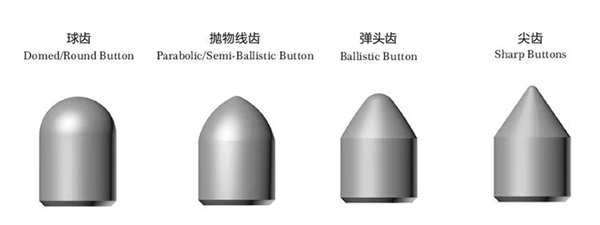

It is mainly used for DTH drill bit edge teeth, suitable for very hard rocks with strong abrasivity.
Parabolic tooth:
It is mainly used in DTH drill bit side and middle teeth, suitable for rocks with medium and hard wear.
Warhead tooth:
It is mainly used in DTH drill bit middle teeth, suitable for abrasive medium hardness medium rocks. The soft rock can also be made edge teeth.
Sharp tooth:
Mainly used in DTH drill bit middle teeth, suitable for soft rocks with high drilling speed and low tooth fracture rate.
