High Quality CIR110 Low Pressure Well Drilling Button Hammer Bit

High Quality CIR110 Low Pressure Well Drilling Button Hammer Bit

Standard:API
Length:Jobber-length
Material:High Speed Steel
Usage:Well Drilling, PCB Drilling, Masonry Drilling
If you are interesting at High Quality CIR110 Low Pressure Well Drilling Button Hammer Bit,you can contact us with the inquiry button.
INQUIRY WhatsApp

Description of High Quality CIR110 Low Pressure Well Drilling Button Hammer Bit

Product Description

The drill body of the product is 42crmo. 42CrMo steel belongs to ultra-high-strength steel, with high strength and toughness, good hardenability, no obvious temper brittleness, high fatigue limit and resistance to multiple impacts after quenching and tempering. Ability, low temperature impact toughness is good. The steel is suitable for the manufacture of large and medium-sized plastic molds that require certain strength and toughness. Alloy grade: YK05
CIR series Middle/Low air pressure DTH drill bit, CIR110A Drill for impactor
CIR Series has the following types:
CIR 70A size: 70 80
CIR 90A size: 90 100 110 120 130 140 150
CIR110A size: 110 120 130 140 150 165 175(See table below)
CIR150A size: 155 165 180 200
Special models can be customized
High Quality CIR110 Low Pressure Well Drilling Button Hammer Bit

DTH Drill bit features:
Fast drilling and retrieval!High efficiency, low labor intensity of workers!
DTH Drill bit usage:
Widely used in earth and stone engineering mining Wells drilling construction projects drilling Wells edge pillar support.
DTH Drill bit model:
Medium/Low wind pressure DTH Drill bit:80 90 100 110 120 130 140 150 180 185 200 220
High wind pressure DTH Drill bit:115 127 138 152 165 178 195 203 216 240 254 304
DTH Drill bit type:
Medium/Low wind pressure DTH Drill bit,High wind pressure DTH Drill bit
DTH hammer model:
Medium/low wind pressure DTH hammer:CIR65 CIR70 CIR90 CIR110 CIR130 CIR150 CIR170 CIR200
High wind pressure DTH hammer:DHD340 DHD350 DHD360 DHD380 N125 SD12

DTH HAMMER application scope:

Widely used in metallurgical, coal, chemical, building materials are not busy mines and water conservancy, hydropower, highway and railway defense construction projects, etc. Suitable for dry wind water mixing and shotgun-hole water gushing wet operation, reliable performance, is the ideal drilling hole and rock drilling equipment.

Drill Diameter	The connection specification	Alloy (star)	Stomates	Weight(KG)	Notes
50	29×4	5	1	1	With type 50 hammer
65	37×4	6	1	1.4	With type 60 hammer
76	44×4	8	2	2.2	With type 70 hammer
80	50×6	8	2	3.2	With type 80 hammer
90	54×6	10/11	2/3	3.9	With type 90 hammer
100	54×6	10/11	2/3	4.1	With type 90 hammer
110	54×6/60×4/65×6	13	2/3	6.0	With type 90/100B/110 hammer
120	54×6/60×4/65×6	12/13	2/3	6.2	With type 90/100B/110 hammer
130	54×6/60×4/65×6	15	3	7.2	With type 90/100B/110 hammer
140	60×4/65×6	15	3	7.9	With type 100B/110 hammer
145	60×4/65×6	16	3	8.2	With type 100B/110 hammer
150	60×4/65×6/90×6	16/20	3	8.6-19.8	With type 100B /110/150 hammer
160	65×6/90×6	20/21	3	19.3	With type 110/150 hammer
170	65×6/90×6	20	3	19.8	With type 110/150 hammer
175	65×6/90×6	20/21	3	20	With type 110/150 hammer
180	65×6/90×6	20	3	21.6	With type 110/150 hammer
200	90×6	20	3	24	With type 150 hammer
105	64×8	13	2	8	With type 340 hammer
115	64×8	13	2	8.5	With type 340 hammer
140	82×8	14	2	12	With type 350 hammer

High Quality CIR110 Low Pressure Well Drilling Button Hammer Bit

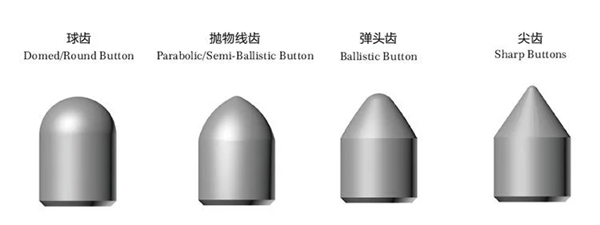

The ball tooth:
It is mainly used for DTH drill bit edge teeth, suitable for very hard rocks with strong abrasivity.
Parabolic tooth:
It is mainly used in DTH drill bit side and middle teeth, suitable for rocks with medium and hard wear.
Warhead tooth:
It is mainly used in DTH drill bit middle teeth, suitable for abrasive medium hardness medium rocks. The soft rock can also be made edge teeth.
Sharp tooth:
Mainly used in DTH drill bit middle teeth, suitable for soft rocks with high drilling speed and low tooth fracture rate.

DTH hammer bits benefits

1.Due to the special internal structure of the DTH hammer designed according to the latest drilling theory, it can provide the maximum energy for the bit, with high drilling speed and low gas consumption.
2.Due to the use of high-quality alloy steel materials and advanced processing technology, the performance of DTH hammer is stable and its service life is long.
3.Because of the simple and reliable internal structure, the hammer is easy to disassemble, low failure rate and easy to maintain.
4.Due to the multi thread connection of chuck and hydraulic cylinder, it is easy to separate the drill from the hammer.
5.Interchangeable with DTH bit and drill pipe.Our company provides low pressure DTH Drill bits and off center DTH Drill bits.
We can make different specifications and different forms of alloy ball bit according to different needs of users.It is widely used in mining, tunnel excavation, underground plant excavation and other construction sites.It is an ideal substitute for the same type of ball bit abroad, with stable quality and high cost performance.
