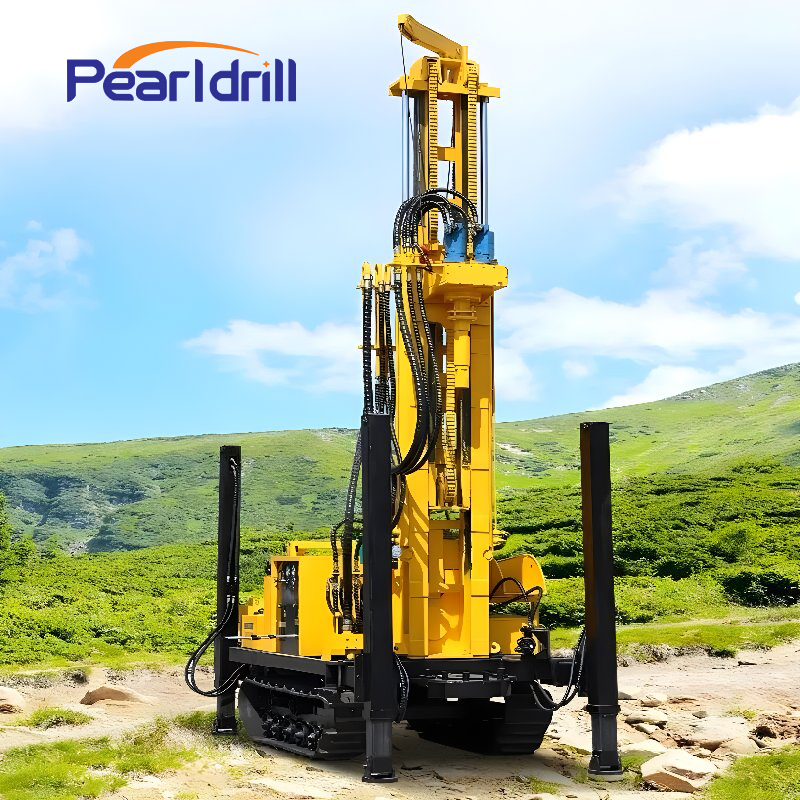

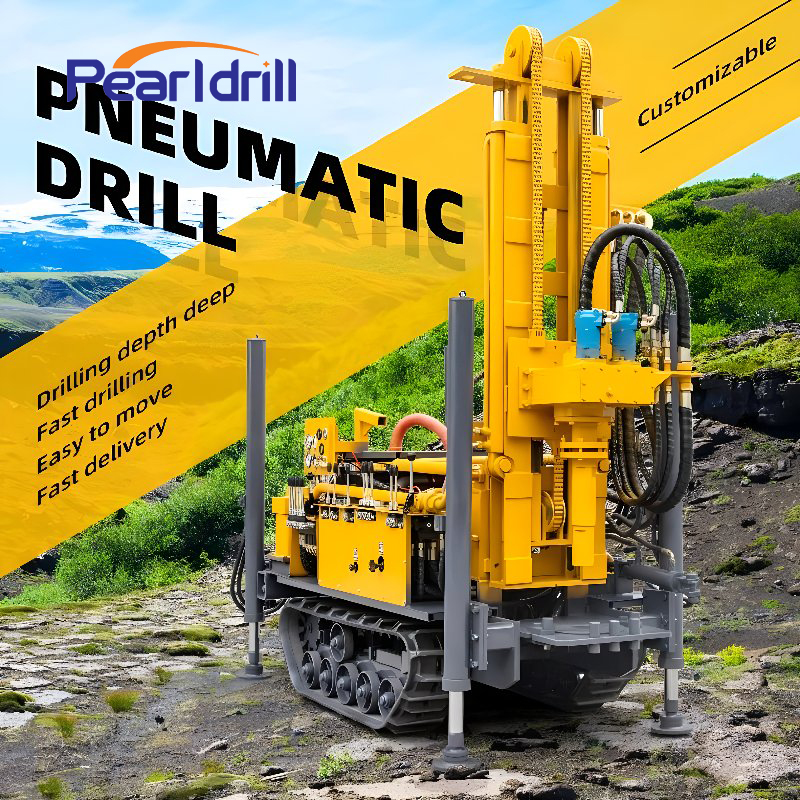

Hengwang Pneumatic drilling rig is especially suitable for water intake in mountainous and rocky strata.Pneumatic water well drilling machine need use together with air compressor , it can add Mud Pump and foam pump .It need use different drilling tools like:drilling rod ,hammer,rock drill bits ,etc
Main feature:
1. High power, fast drilling speed and low unit fuel consumption;
2. The diameter of the hole is large, up to 245~294mm;
3. Tracked chassis improves off-road performance.
| Model | HQZ180L |
| Drill Mast(m) | 3 |
| Chassis | Rubber track |
| Drilling diameter(mm) | 130-254 |
| Drilling depth(m) | 180 |
| one-time advance length(m) | 3.6 |
| Walking Speed(km/h) | 2.5 |
| Gradeability | 30 |
| Engine brand | Yunnei |
| Main motor power | 42kw |
| Working pressure(mpa) | 1.45-2.5 |
| Air consumption(m³/min) | 17-31 |
| Drill pipe diameter(mm) | 76/89 |
| Drill pipe length(m) | 1.5/2.0/3.0 |
| Lifting force(t) | 12 |
| Rotating speed(rpm) | 40-65 |
| Rotary torque(N.m) | 3500-3800 |
| Dimensions | 3500*1700*2250 |
| Machine weight(t) | 4.5 |
