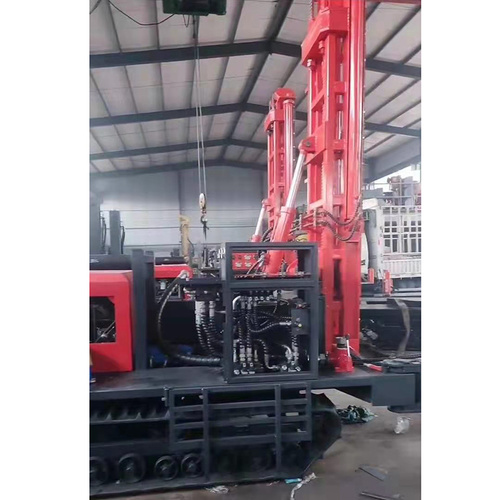

FS-180 crawler water well drilling rig

Description of FS-180 crawler water well drilling rig

FS-180 crawler water well Drilling Rig

Scope of application: It is suitable for industrial, civil drilling, and geothermal drilling. It has the advantages of large drilling diameter, deep drilling, fast footage, flexible movement, and wide application area.

The main technical parameters:

Drilling depth: 180m

Drilling diameter: 105-180mm

Working wind pressure: 1.25-3.5Mpa

Air consumption: 16-55m3/min

Drill rod length: 3m

Recommended drill pipe diameter: 76mm

Shaft pressure: 4T

Lifting force: 16T

Lifting speed: 20m/min

Fast forward speed: 40m/min

Maximum turning torque: 5900

Maximum rotation speed: 85/170r/min

Small vice winch lifting force: -1.2T

High outrigger stroke: 1.35m

Feeding efficiency: 10-35m/h

Walking speed: 2.5km/h

Climbing ability: 21 degrees

Machine weight: 4.5T

Dimensions: 3.4Mx1.7mX2.2m

Adaptation conditions: loose layer and bedrock

Drilling method: top drive hydraulic rotation and propulsion, down-the-hole impactor, or mud drilling

Equipped with impactor: medium and high wind pressure series

Engine: Yuchai 70KW
