Water well drilling rigs

300m multi-functional crawler water well drilling rig machine

300m multi-functional crawler water well drilling rig machine

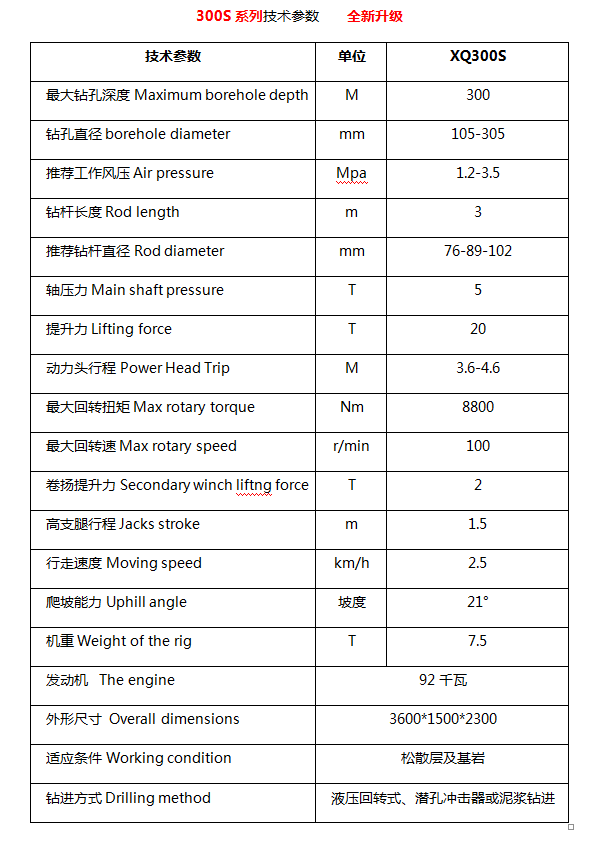

Maximum borehole depth: 300m
borehole diameter: 105-305mm
pipe diameter: 76-89-102mm
engine power: 92KW
If you are interesting at 300m multi-functional crawler water well drilling rig machine,you can contact us with the inquiry button.
INQUIRY WhatsApp

Description of 300m multi-functional crawler water well drilling rig machine

300S series water well Drilling Rig adopts multi-functional full hydraulic control, and the overhead power head drives the rotation, with high drilling efficiency.
The whole machine has compact layout and small size, which can meet the requirements of well drilling and culvert transportation. The drill is equipped with a 92 kW engine and a 63 / 63 / 32 gear hydraulic oil pump. The main engine adopts crawler self-propelled type, tm09 traveling motor and excavator are equipped with four wheels.
It has good mobility and is convenient for construction in complex terrain in cities and mountainous areas. The hydraulic system adopts variable system. The compound telescopic sliding frame of the drilling rig greatly reduces the labor intensity and improves the construction efficiency and project quality.

It is widely used in drilling ground source air conditioning holes, water wells, testing wells, dewatering wells, rescue wells and other engineering projects.
