6/4D-G Gravel Sand Pump for Coal Washing

Size: 6
Capacity: 36-250m³/h
Head: 5-52m
Speed:600-1400rpm
If you are interesting at 6/4D-G Gravel Sand Pump for Coal Washing,you can contact us with the inquiry button.
INQUIRY WhatsApp

Description of 6/4D-G Gravel Sand Pump for Coal Washing

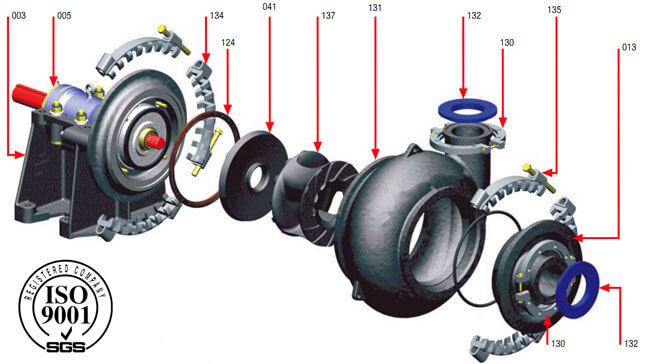

Construction of G Gravel pump

6/4D-G Gravel <a href=/sand-pump.html target='_blank'>sand pump</a> for Coal Washing

Main Part Number At The Drawing

003：Base 005：Bearing Assembly 132：Intake Joint, Discharge Joint

130：Discharge Flange, Intake Flange 013：Cover Plate 131：Bowl

137：Impeller 041：Back Liner 135：Door Clamp Ring

134: Adapter Plate Clamp Ring 124：Volute Cover Seal

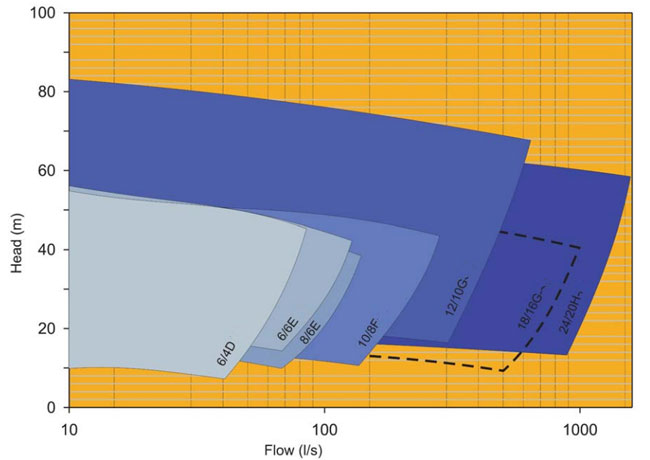

GRAVEL PUMP SELECTION CHART

6/4D-G Gravel Sand Pump for Coal Washing

Note: Approximate Performance For Clear Water, To Be Used For Primary Selection Only.

6x4D-G Sand and Gravel Pump is designed specifically for continuous pumping of extremely aggressive slurries, with a wide particle size distribution. Capable of handling large particles at consistently high efficiencies results in low cost of ownership. The large volume internal profile of the casing reduces associated velocities further increasing component life.

Model	Max. Power P (kw)	Capacity Q (m3/h)	Head H (m)	Speed n (r/min)	Eff. η (% )	NPSH (m)	Impeller Dia. (mm)
6/4D-G	60	36-250	5-52	600-1400	58	2-5.5	378
6/4E-G	120	36-250	5-52	600-1400	58	2-5.5	378
8/6E-G	120	126-576	6-45	800-1400	60	3-4.5	391
10/8S-G	560	216-936	8-52	500-1000	65	3-7.5	533
10/8S-GH	560	180-1440	24-80	500-950	72	2.5-5	711
10/8F-G	260	216-936	8-52	400-800	65	3-7.5	533
12/10F-G	260	360-1440	10-60	350-700	65	1.5-4.5	667
12/10G-G	600	360-1440	10-60	400-850	65	1.5-4.5	667
12/10G-GH	600	288-2808	16-80	350-700	73	2-10	950
14/12G-G	600	576-3024	8-70	300-700	68	2-8	864
14/12T-G	1200	576-3024	8-70	300-700	68	2-8	864
16/14G-G	600	720-3600	18-45	300-500	70	3-9	1016
16/14T-G	1200	720-3600	18-45	300-500	70	3-9	1016
16/14TU-GH	1200	324-3600	26-70	300-500	72	3-6	1270
18/16TU-G	1200	720-4320	12-48	250-500	72	3-6	1067

G/GH heavy-duty sand & gravel pump design typically caters for high head high volume duties, the sand and gravel pump is best suited to Sand & Gravels, Dredging, Cutter Suction Dredger, Sand Excavation, Coal Washing, Tunnels, Power Plant, Mineral Processing Plants, Higher head cyclone feed or Long distance pipeline duties and Other industries.
