ADMT 300S-X Single Channel Groundwater detector (New version out of former ADMT 200S and 300S in square-box shape)
Model:
Flagship classic version: ADMT-300S-X. Other depths: ADMT-600S-X, ADMT-1200S-X, ADMT-3000S-X
Features:
7-inch touch screen. Real-time imaging, intelligent and precise, adjustable depth. There are three measurement modes: MN electrode measurement, TT measurement with a box probe, as well as a rod probe.
Automatic imaging: 7"Android touch screen into 2D, 3D, and curved images in real time.
Precise and stable： Over 50 years of iterative upgrades for high measurement accuracy and stable performance.
Triple screen interoperability： The instrument screen, mobile phone screen, and computer screen are interoperable.
Intelligent and flexible： M N electrode and TT probe measurements can be switched, with an optional wireless probe or water finding gold band.
Note: ADMT 300S-X is the upgraded and latest version of the former ADMT 200S and 300S with a square-box shape, which needs to be connected to an Android cell phone to generate graphs. AIDU has stopped producing these old models and will not offer after-sales service gradually. Please purchase the new version as stated on this page.
AI Interpretation
Accurate & Stable
Auto Imaging
Multi-screen InterComm
A single-channel ground water detector is used to find out the location, depth, yield, and other related information of groundwater to guide operations of borewell drilling to increase the success rate and guide the conducting of regional hydrogeological investigations.
High Precision and Strong Anti-interference
The core module of the instrument adopts integrated packaging, which has high precision and greatly enhanced anti-interference. It is equipped with a high-performance processor to run a variety of algorithms, and the output is stable and accurate, ensuring the accuracy of the instrument in various environments

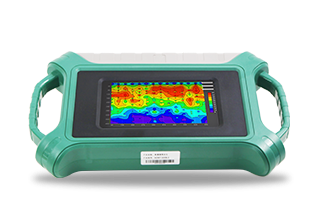

Auto Plotting
After the measurement is completed, two-dimensional and three-dimensional color pictures and various curves are generated immediately. It is equipped with a 7-inch touch screen and is easy to operate. You can learn to operate it in 5 minutes
High Operation Flexibility
A variety of adjustable depths, two interchangeable measurement modes, MN and TT

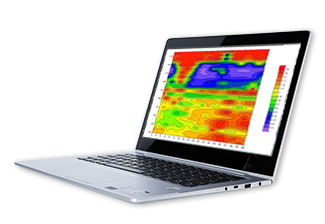

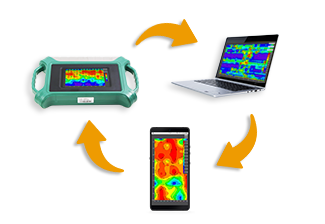

Multi-screen Data Sharing
To share data on mobile phones, instruments, computers, and remote terminals, you only need to log in with the same account, and data sharing is supported between multiple accounts.
AI-Powered Analysis
24/7 free AI interpretation of geological images. The system continuously improves based on local user feedback, becoming more accurate with each input, providing reliable recommendations for water exploration and drilling
Free App and value-preserving Upgrade
The instrument includes a full set of APP software, supports free online upgrades, and can be redeemed for other products within 6 months of purchase, freely.
Lifetime Expert Assistance
Data processing analysis, instrument maintenance, online technical guidance, and other services are all lifetime technical support

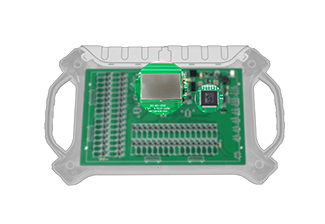

A. High-fidelity signal conditioning amplifier to ensure signal accuracy.
The an analog circuit part of the front-end signal conditioning amplifier of the instrument is shielded by an integrated package, which greatly enhances the anti-interference, improves the signal output accuracy, and greatly improves the instrument measurement accuracy.
B. High-performance processor, running a variety of algorithms.
Using a high-performance processor, running a variety of algorithms, the output is stable and accurate, ensuring the measurement accuracy of the instrument.

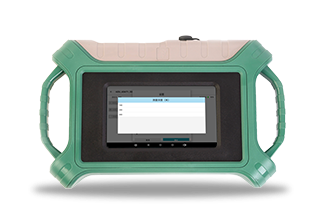

C. The 7-inch touch screen operates
to generate 2D/3D and curve images in real time
a. switch b. charger c. multi-function interface d. hand grip

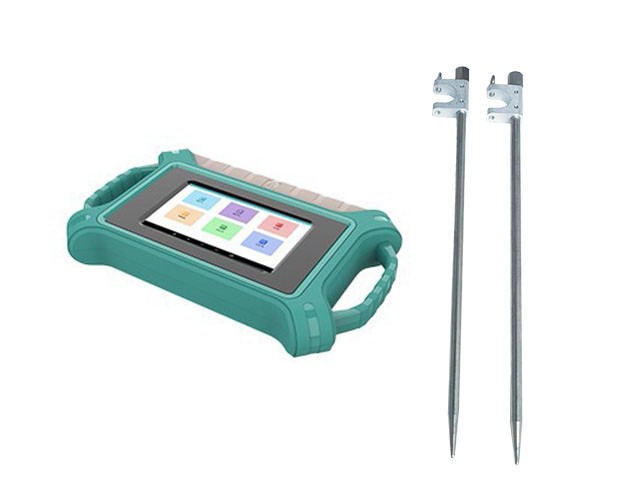

e. MN electrode measurement [standard configuration]
A 10-meter cable connection can be measured by plugging it into the ground, and it is suitable for two people to measure.
f. Wired electromagnetic probe [optional]
It is suitable for any ground, such as cement, rock, frozen soil, etc., and a single person can complete the measurement
g. Wireless golden hoop [optional]
completely wireless mode, suitable for any ground such as cement, rock, frozen soil, etc., one person can complete the measurement
Product design, packaging, or accessories are subject to change due to ongoing improvements. For the most up-to-date information, please contact our service team.
Versions
ADMT-300S-X
ADMT-600S-X
ADMT-1200S-X
ADMT-3000S-X
Max Depth (m)
≤300
≤600
≤1200
≤3000
Sensing Mode
1 channel MN input
Number of Channels
1
Depth Options (m)
100-300
100-600
100-1200
100-3000
Scan Interval (m)
10-60
10-80
Connections
Serial port, Wifi, Bluetooth 4.0, USB (optional 4G)
Display
7-inch IPS wide-angle 178° visual touch screen
OS
Android 6.0.1 / Android 13
CPU
ARM Cortex-A7 8-core CPU 2.0Hz / RK3568
GPU
OpenGL ES 2.0 / Mali G52
Features
Multiple options of depths, 2D/3D plotting, removable battery
Sensing Mode
MN/TT
Frequency Range (hz)
1-8K
0.01-8K
Filtering
Preset or intelligent frequency selection, analog + data filtering 1-16 times superposition optional
Discrim.
0.1mV±5%
0.01mV±2%
Acquisition Time (s)
30-280
60-900
Battery
600mA/H
Console Weight
1.6kg
