Metal Detector

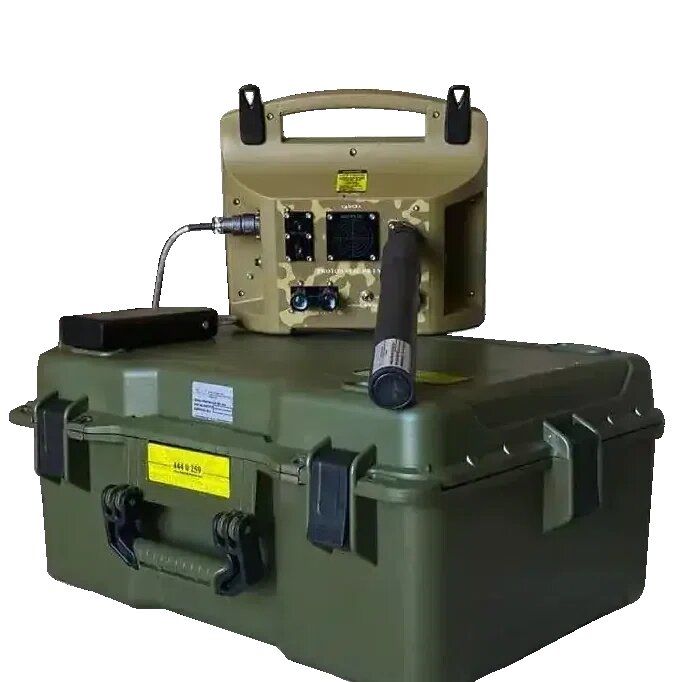

Proton Elic RB-I M-4
- 2D/3D Visualization
- 1 Digital Probe
- Metal and Space Sensitive Led Lights
- Magnetometer
- If you are interesting at Proton Elic RB-I M-4,you can contact us with the inquiry button.
-
Description of Proton Elic RB-I M-4
Description
M-4 Professional underground imaging device is the latest technology of the domestic and national digital sensor The entire device was developed by our company Assuva defense industry high engineers. made easy. Comand screen, High resolution, 64 PXS Digital Thermal sensor, Three-axis magnetic. Digital sensor, adjustable axes, personalized sensitivity settings, robust and light body portable box design.
The M-4 has a fully digital sensor. Device magnetic sensor consists of three axes ( X Y Z ) axes scan automatically, on the other hand, the rear command screen of the device It is also used when visual touch is desired.
For example; one-way ( Z ) axis scanning or adjustment in different axes such as ( X, Y ) can be scanned. The command signal on the back of this scanning device The intensity can be seen and there is a rising and falling signal OCILATOR. On metallic objects rises up and red is working.
Emptiness or formations such as a light blue space (Room, Tunnel, Passage) on a wide floor. the dark blue acylator also descends. On the other hand, this scanning process and all of these processes are not connected to the PC. command can be seen on the screen. The processed data can be viewed while the PC is connected. The thermal sensor has 64 PXS features and is digitally processed data image and identification is very high.
In this scanning format, a full-screen 64 PXS equals to the rear comand of the device. Ability to see each point live on the screen with high resolution offers. These scans can be viewed in 3D with a data clarity processed with PC connectivity when desired. comand unit ( 1,2 ) in terms of values between the data received on the screen and the PC may differ. However, the ground difference of the scan is more than a full measure. visible in night sweeps and on wet ground, snowy ground, patchy ground, elements will be normal rather than thermal mode scan detection.
Moreover, both sensor sensitivity can be adjusted on the device's own command screen. can be assigned to the raising or lowering level. And in a very polluted area, for example; waste A comfortable and smooth image can be obtained when scanning in areas with metals. And Much more personalized. Our M4 model is expressed as an anomaly such as explosives, ammunition and bunkers. It can also find objects and structures that we can
Own Documents
NATO STOCK CODE-( NCAGE-TH763 )
WORLD STANDARDS ( CE ) CERTIFICATE
ISO 9001 QUALITY CERTIFICATE
ISO 14001 QUALITY CERTIFICATE
ISO 22000 QUALITY CERTIFICATE
ISO 45001 QUALITY CERTIFICATE
ISO 27001 QUALITY CERTIFICATE
ISO 10002 QUALITY CERTIFICATE
ISO 18001 QUALITY CERTIFICATE
OHSAS 18001 QUALITY ASSURANCE CERTIFICATE
Product Content；
The software of the device is free of charge. But "Tablet is sold extra."
The software of the device is free in the device package.
The tablet is not included in the package.
We ship to every country with international air cargo companies.
Our production time is an average of 5 days. It may vary depending on the model or density of the device.
Carrying bag
Main unit
Sensors
Connection cable
Tablet bag
Software
Assuva Proton Elic RB-I M-4 Technical Specifications
Operating temperature -20C to +40C
Temperature when not working -40C to +60C
Do not expose to direct sunlight.
Transducer pulse width modulated rate 1953 khz
Battery time 50-100 hr
Charging time max 3 hours
Maximum continuous power 850 mA
Voltage source 5V Frequency width 433mhz+/-khz miscellaneous Maximum operating humidity -95
Software display colors 276m
Screen refresh rate 0.2 sec
Water resistant-no
Processor – IMU MAGNETIC-0120ut
THERMAL SENSOR 64 pixels
Internal working memory-2 CGB
Modulation -100.1 am
Modulation signal-digital Demodulation-log
AM-DEMODULATOR Scan center-1.3 A
Scan rate-0.2 Nanosecond(max)-auto 1pps
Transmitters 2-7 Measuring range-+-150Ut
Bandwidth- DC ..1 kHz (-3 dB)
Green laser
Touch screen
50 meters depth
1000 meters range
