Description of 32-Channel High Density Groundwater Detector
32-Channel High Density Groundwater detector
Model: ADMT-400SX-32D, ADMT-600SX-32D, ADMT-1200SX-32D, ADMT-3000SX-32D, ADMT-4000SX-32D
Features: 32-channel real-time automatic 3D/2D image,10.1" Android touch screen, Multiple measurement modes: MN electrode measurement, TT measurement with box probe as well as rod probe
Automatic Imaging: The 10.1-inch Android touchscreen intelligently generates 2D/3D images and curve graphs.
Stable and Accurate: Addresses the inconsistencies and fluctuations in the strength of the natural electromagnetic field, significantly enhancing the accuracy of survey results.
Cross-Device Operation: The instrument, mobile device, and PC can all operate seamlessly using the same backend data.
Smart and Flexible: Channels from 1 to 30 can be selected, with optional electromagnetic probes for TT mode measurements, and wireless connection to the Gold-rod device.
32-channel Groundwater Detector
R&D Since 1973
Stable Performance High Accuracy
6-Month Trade-Up Guarantee
Applications
ADMT ground water detectors are used to find out the location, depth, yield and other related information of groundwater to guide operations of borewell drilling to increase success rate and guide conducting regional hydrogeological investigations.
SEVEN ADVANTAGES
TO HELP YOU EXPLORE WORRY-FREE
High Precision and Strong Anti-interference
The core module of the instrument adopts integrated packaging, which has high precision and greatly enhanced anti-interference. It is equipped with a high-performance processor to run a variety of algorithms, and the output is stable and accurate, ensuring the accuracy of the instrument in various environments
Auto Plotting
After the measurement is completed, two-dimensional and three-dimensional color pictures and various curves are generated immediately. It is equipped with a 10.1-inch touch screen and is easy to operate. You can learn to operate it in 5 minutes
High Operation Flexibility
A variety of adjustable depths, two interchangeably measurement modes, MN and TT

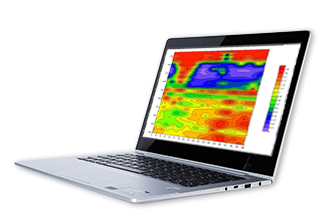

Multi-screen Data Sharing
To share data on mobile phones, instruments, computers, and remote terminals, you only need to log in with the same account, and data sharing is supported between multiple accounts.
AI-Powered Analysis
24/7 free AI interpretation of geological images. The system continuously improves based on local user feedback, becoming more accurate with each input, providing reliable recommendations for water exploration and drilling
Free App and value-preserving Upgrade
The instrument includes a full set of APP software, supports free online upgrades, and can be redeemed for other products within 6 months of purchase
Lifetime Expert Assistance
Data processing analysis, instrument maintenance, online technical guidance and other services are all lifetime technical support
GOOD AT CORE AND BEAUTIFUL IN SHAPE
① Hi-Fi Signal Conditioning Amplifier Guaranteed signal accuracy
The analog circuit part of the front-end signal conditioning amplifier of the instrument adopts integrated packaging and shielding, which greatly enhances anti-interference, improves the signal input accuracy, and greatly improves the measurement accuracy of the instrument.
② High-performance processor Run multiple algorithms
Adopt high-performance processor, run various algorithms, make the output stable and accurate, and ensure the measurement accuracy of the instrument

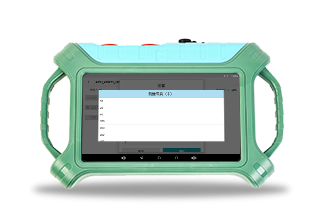

③ 10.1 inch touch screen operation

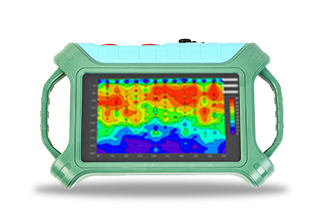

Real-time 2D/3D and curved images

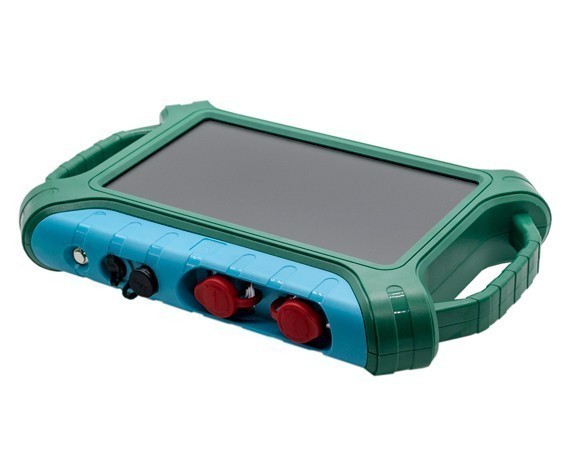

① Power Button ② Charging Port ③ Data Port ④ 17-32 Channels ⑤ 1-16 Channels

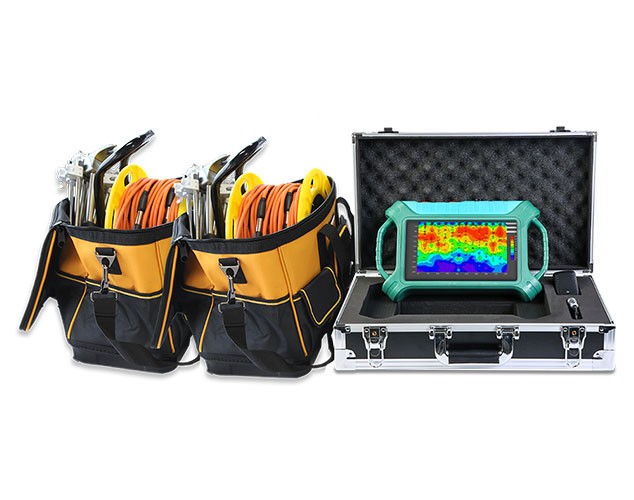

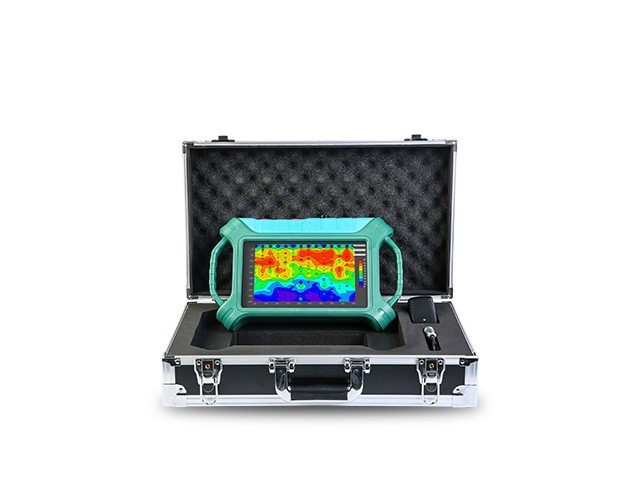

Accessories
① Cables x 2 ② Hammer ③ Electrodes x 32
④ Wired connection probe (optional)
Capable of operating on various terrains, including concrete, rock, and frozen soil. It can be operated by a single person.
⑤ Wireless connection golden rod (optional)
Fully wireless. Capable of operating on various terrains, including concrete, rock, and frozen soil. It can be operated by a single person.
Product design, packaging, or accessories are subject to change due to ongoing improvements. For the most up-to-date information, please contact our service team.
TECHNICAL PARAMETERS
Versions
|
ADMT-400SX-32D
|
ADMT-600SX-32D
|
ADMT-1200SX-32D
|
ADMT-3000SX-32D
|
ADMT-4000SX-32D
|
Max Depth(m)
|
≤400
|
≤600
|
≤1200
|
≤3000
|
≤4000
|
Channel Input
|
32 channels of simultaneous input with a standard electrode spacing of 2.5m, and optional spacings of 5m, 7.5m, or 10m
|
Channel Options
|
1-30
|
Depth Options
|
100/200/300/400/500/600/800/1200/2000/3000/4000m
|
Scan Resolution
|
40-160
|
Connection
|
Serial port, WiFi, Bluetooth 4.0, USB(optional 4G)
|
Display
|
10.1 -inch, IPS wide Angle, 178° visual touch screen (1024×600)
|
OS
|
Android 6.0.1 / Android 13
|
CPU
|
ARM Cortex-A7 8-core CPU 2.0Hz / RK3568
|
GPU
|
OpenGL ES 2.0 / Mali G52
|
Core Features
|
Flexible depth options, customizable channel number options, real-time 2D/3D imaging, battery removable
|
Meas. Mode
|
MN/TT
|
Freq. Range (Hz)
|
1-8K
|
0.01-6K
|
Freq. Selection
|
Preset frequency selection and intelligent frequency selection, analog + data filtering, options of 1-16 times stackings
|
Resolution
|
0.001-7K
|
Acq. Time (s)
|
120-7200
|
160-9000
|
Battery
|
900mA/H
|
Main Unit Weight
|
2.0 kg
|
2.2 kg
|
Customer Cases
Product: ADMT Multi-channel Groundwater Detector
Operation: The surface to a depth of 30 meters consists of loose granite weathering layers accompanied by quartzite veins. Further downward, structural anomalies are observed, with changes in rock particle composition and fault gouge. Below 130 meters, there is a possibility of pyrite, with the rock becoming denser and harder, alternating between gray-white and gray-brown-yellow in color.
Results: At 20–30 meters, the water yield is approximately 10 cubic meters per hour. From 80–120 meters, the water yield increases, with primary water output at depths of 20 meters and 80 meters. The well was completed at a depth of 200 meters, with a water yield of about 20 cubic meters per hour. The measurement results are consistent with the actual conditions.
Trusted by Millions, CCTV Recommended
SERVING THE WORLD
QUALIFICATION CERTIFICATE
Certificates and Awards: CE, ISO, China National High-tech Enterprise, China National Technical Invention Patent
