Description of 300m 400m Pneumatic Water Well Drilling Rig
Basic Info.
Feature
Portable, High Drilling Efficiency
Name
Water Well Drill Rig
Transport Package
Carton or Wooden Box
Production Capacity
50000pieces/Year

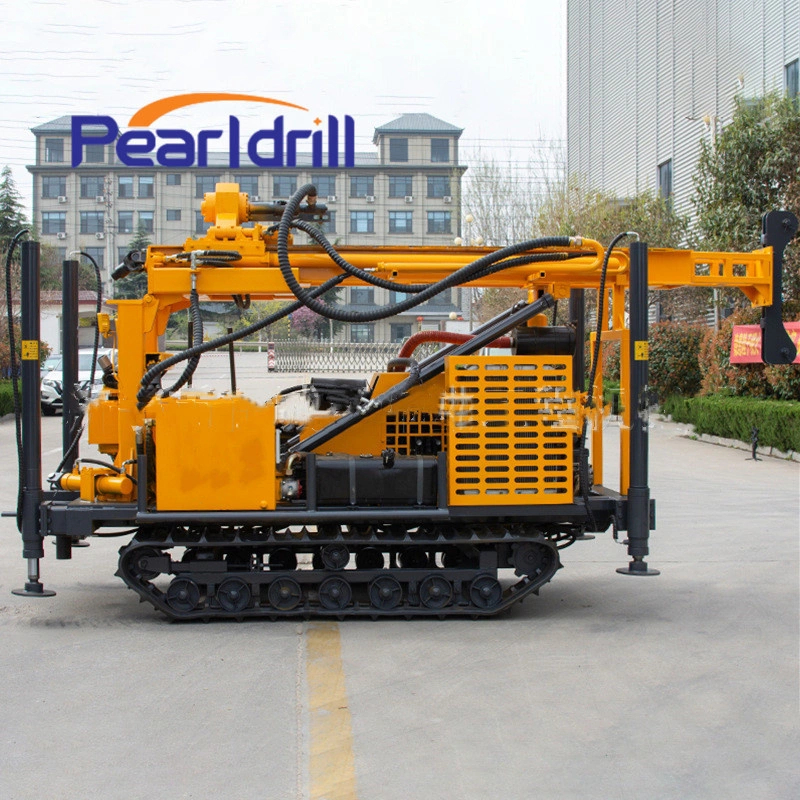

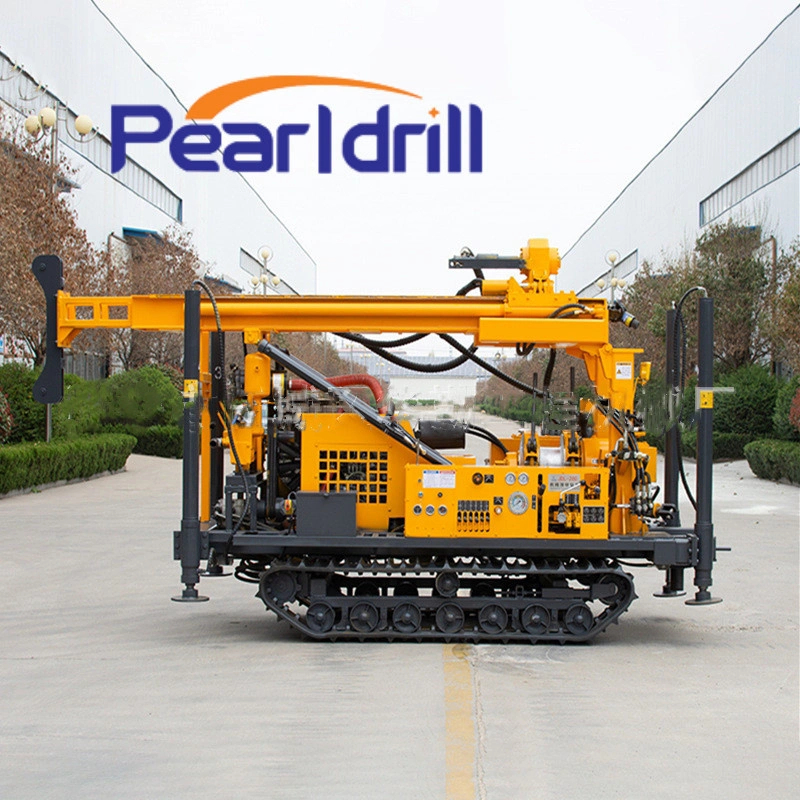

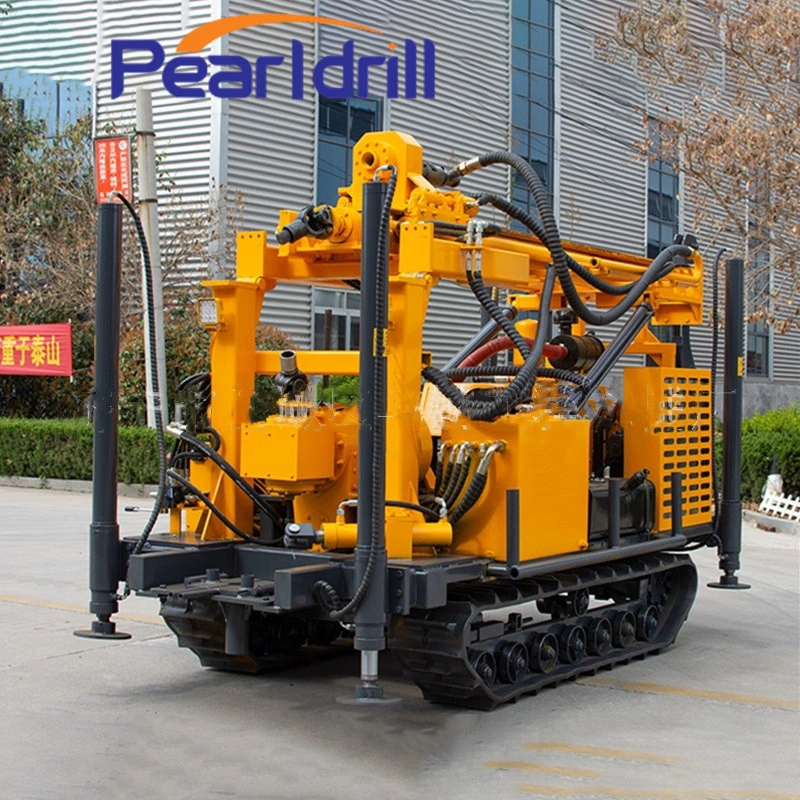

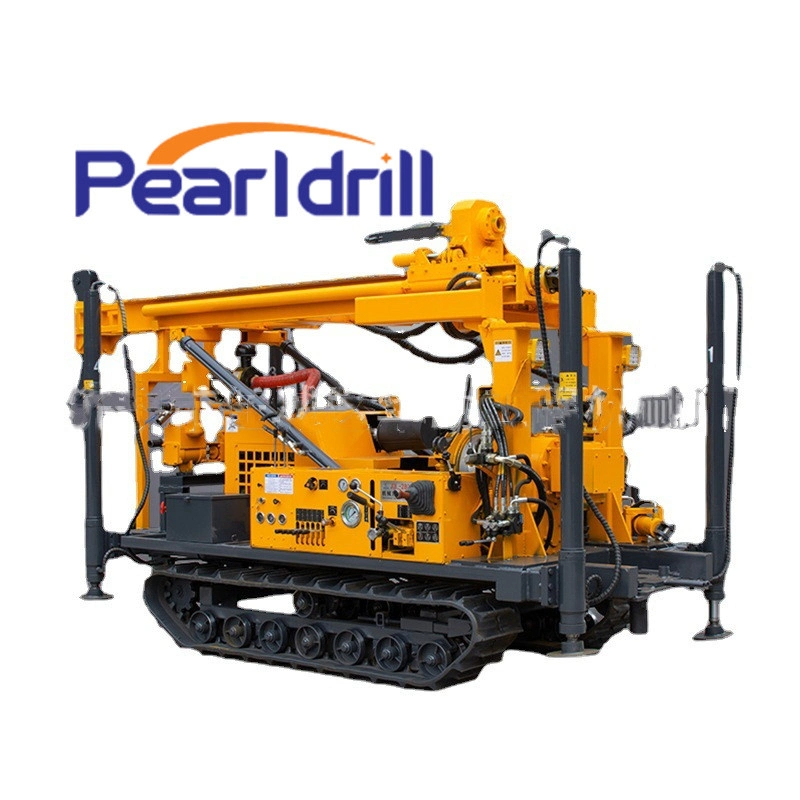

PD320P Drill Rig is a water well drilling equipment independently developed by the company that integrates the functions of water drilling and air drilling. It adopts the 525 gearboxes for Drilling Rigs, and the gear switching is sensitive and convenient. The transmission efficiency is doubled compared with the hydraulic transmission, and the power consumption is reduced by 35%, more efficient and energy-saving. It solves the problem that the air DTH hammer is difficult to drill in the soil layer, and the construction efficiency of the rotary drilling rig in the hard rock layer, gravel, and pebble layer is low.
Main features of drilling rig:
1. The speed of the drilling rig can reach the speed range of 27-901r/min, and the maximum output torque is 10500N.m.
2. The drilling rig adopts a long-stroke double-speed mechanism, a mechanical powerhead, and the powerhead stroke is 3500MM, which is used to improve the drilling efficiency and reduce the occurrence of drilling blockage and drilling accidents.
3. The drilling rig uses dual oil pumps to supply oil, a single pump is used for drilling, and double pumps are used to combine when lifting and lowering; less power loss and short auxiliary time.
4. The crawler chassis is adopted, and the outrigger cylinder travel is 1.5m, which can be automatically loaded into the truck, which is convenient for relocation and transportation.
5. The drilling rig is in the machinery. Some functional interfaces are reserved in the hydraulic system, and functions can be expanded according to the technological requirements of different users.
