10/8F-G Gravel Sand Pump for Dredging

Size: 10
Capacity: 216-936m³/h
Head: 8-52m
Speed:500-1000rpm
If you are interesting at 10/8F-G Gravel Sand Pump for Dredging,you can contact us with the inquiry button.
INQUIRY WhatsApp

Description of 10/8F-G Gravel Sand Pump for Dredging

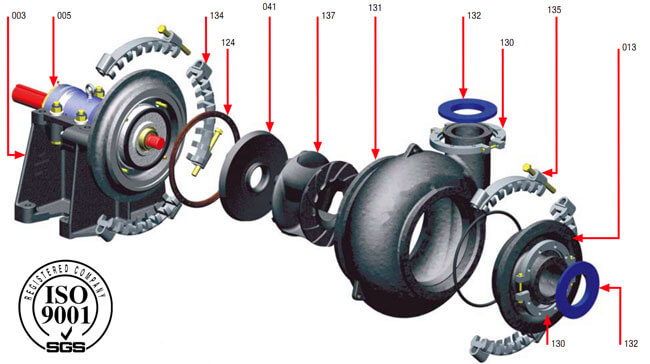

Construction of G Gravel pump

Gravel <a href=/sand-pump.html target='_blank'>sand pump</a> for Dredging

Main Part Number At The Drawing

003：Base 005：Bearing Assembly 132：Intake Joint, Discharge Joint

130：Discharge Flange, Intake Flange 013：Cover Plate 131：Bowl

137：Impeller 041：Back Liner 135：Door Clamp Ring

134: Adapter Plate Clamp Ring 124：Volute Cover Seal

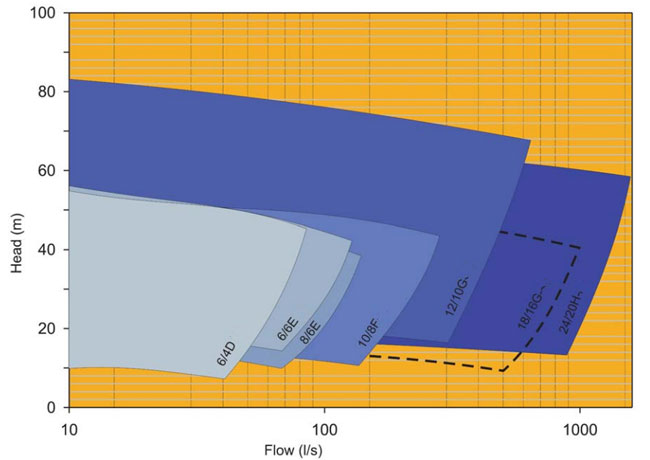

GRAVEL PUMP SELECTION CHART

10/8F-G Gravel Sand Pump for Dredging

Note: Approximate Performance For Clear Water, To Be Used For Primary Selection Only.

10x8F-G Gravel Pump is the world’s standard for dredge and gravel applications. The range provides excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost. A wide variety of shaft seals provide a perfect fit for a wide range of applications. Pass very large solids not capable of being pumped by AH series slurry pumps. Gravel pump truck can handle remote pumping tasks.

Model	Max. Power P (kw)	Capacity Q (m3/h)	Head H (m)	Speed n (r/min)	Eff. η (% )	NPSH (m)	Impeller Dia. (mm)
6/4D-G	60	36-250	5-52	600-1400	58	2-5.5	378
6/4E-G	120	36-250	5-52	600-1400	58	2-5.5	378
8/6E-G	120	126-576	6-45	800-1400	60	3-4.5	391
10/8S-G	560	216-936	8-52	500-1000	65	3-7.5	533
10/8S-GH	560	180-1440	24-80	500-950	72	2.5-5	711
10/8F-G	260	216-936	8-52	400-800	65	3-7.5	533
12/10F-G	260	360-1440	10-60	350-700	65	1.5-4.5	667
12/10G-G	600	360-1440	10-60	400-850	65	1.5-4.5	667
12/10G-GH	600	288-2808	16-80	350-700	73	2-10	950
14/12G-G	600	576-3024	8-70	300-700	68	2-8	864
14/12T-G	1200	576-3024	8-70	300-700	68	2-8	864
16/14G-G	600	720-3600	18-45	300-500	70	3-9	1016
16/14T-G	1200	720-3600	18-45	300-500	70	3-9	1016
16/14TU-GH	1200	324-3600	26-70	300-500	72	3-6	1270
18/16TU-G	1200	720-4320	12-48	250-500	72	3-6	1067

G/GH heavy-duty sand & gravel pump design typically caters for high head high volume duties, The Gravel pumps are best suited to Sand & Gravels, Dredging, Cutter Suction Dredger, Sand Excavation, Coal Washing, Tunnels, Power Plant, Mineral Processing Plants, Higher head cyclone feed or Long distance pipeline duties and Other industries.
