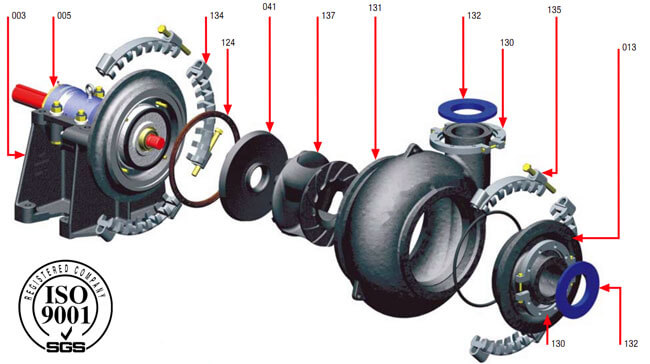

Construction of G Gravel pump
Main Part Number At The Drawing

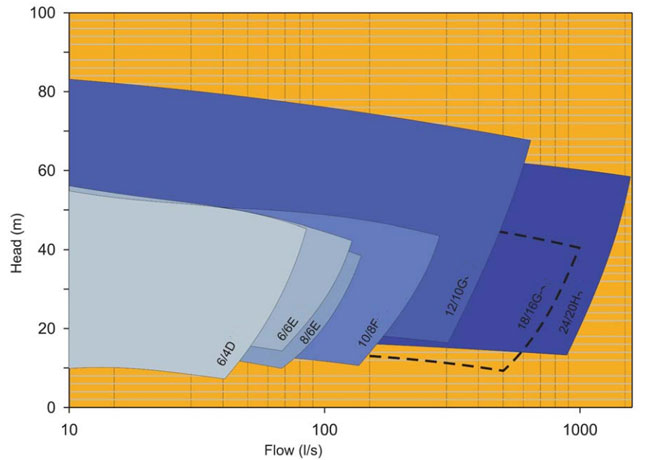

GRAVEL PUMP SELECTION CHART
Note: Approximate Performance For Clear Water, To Be Used For Primary Selection Only.

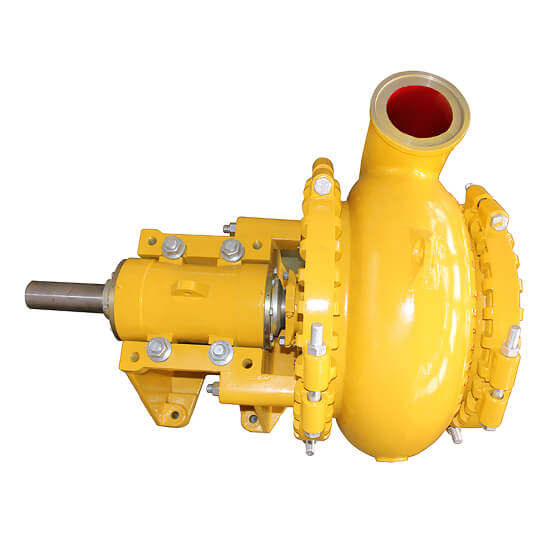

12x10G-G Gravel pump is designed specifically for continuous pumping of extremely aggressive slurries, with a wide particle size distribution. Capable of handling large particles at consistently high efficiencies results in low cost of ownership. The large volume internal profile of the casing reduces associated velocities further increasing component life. 12×10 Sand Gravel Pumps are used to the delivery slurry in mining, explosive sludge in metal melting, grudging in dredger and course of the river and other fields.
Model
Max. Power P
(kw)
Capacity Q
(m3/h)
Head H
(m)
Speed n
(r/min)
Eff. η
(% )
NPSH
(m)
Impeller Dia.
(mm)
6/4D-G
60
36-250
5-52
600-1400
58
2-5.5
378
6/4E-G
120
36-250
5-52
600-1400
58
2-5.5
378
8/6E-G
120
126-576
6-45
800-1400
60
3-4.5
391
10/8S-G
560
216-936
8-52
500-1000
65
3-7.5
533
10/8S-GH
560
180-1440
24-80
500-950
72
2.5-5
711
10/8F-G
260
216-936
8-52
400-800
65
3-7.5
533
12/10F-G
260
360-1440
10-60
350-700
65
1.5-4.5
667
12/10G-G
600
360-1440
10-60
400-850
65
1.5-4.5
667
12/10G-GH
600
288-2808
16-80
350-700
73
2-10
950
14/12G-G
600
576-3024
8-70
300-700
68
2-8
864
14/12T-G
1200
576-3024
8-70
300-700
68
2-8
864
16/14G-G
600
720-3600
18-45
300-500
70
3-9
1016
16/14T-G
1200
720-3600
18-45
300-500
70
3-9
1016
16/14TU-GH
1200
324-3600
26-70
300-500
72
3-6
1270
18/16TU-G
1200
720-4320
12-48
250-500
72
3-6
1067
G/GH heavy-duty sand & gravel pump design typically caters for high head high volume duties, The Gravel pumps are best suited to Sand & Gravels, Dredging, Cutter Suction Dredger, Sand Excavation, Coal Washing, Tunnels, Power Plant, Mineral Processing Plants, Higher head cyclone feed or Long distance pipeline duties and Other industries.
